Bochuang Time & Space S Series IndustrialSwitching Power Supply250W-600W 12V/24V Dual Output, Wide Voltage Input, UAV Defense Equipment, Industrial Control Security LED Power Supply S-250/S-350/S-400/S-500/S-600

Product Overview

Bocreate Space-Time S Series Industrial GradeSwitching Power SupplyA high-stability AC-DC conversion module designed for demanding environments, offering multiple power options from 250W to 600W.

12V and 24V dual voltage output; input compatible with global standard 100-240VAC. Product features metal casing plusSmart FanThermal management structure with built-in overvoltage, overcurrent, and short-circuit protection.

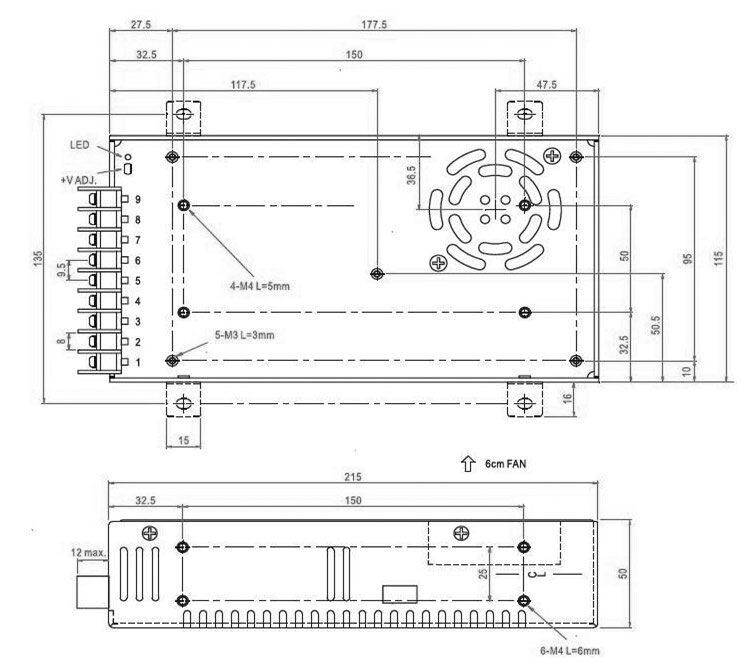

Triple-layer protection ensures continuous, stable operation in industrial control, security surveillance, LED lighting, and communication equipment. Uniform dimensions 215×115×50mm ensure

Ideal for standard installation, it replaces traditional transformers to improve system efficiency and reliability.

Product Features

✅ Wide voltage input: Supports dual-voltage switching between 100-120VAC and 200-240VAC for global compatibility across diverse power grids.

✅ Dual Voltage OutputProvides two mainstream DC voltages, 12V and 24V, to meet the diverse needs of LED strips, PLC controllers, surveillance cameras, automation equipment, and more.LoadRequired

Request.

✅ High Power DensityCovers 250W to 600W power with a compact form factor (215×115×50mm), saving rack space for dense deployments.

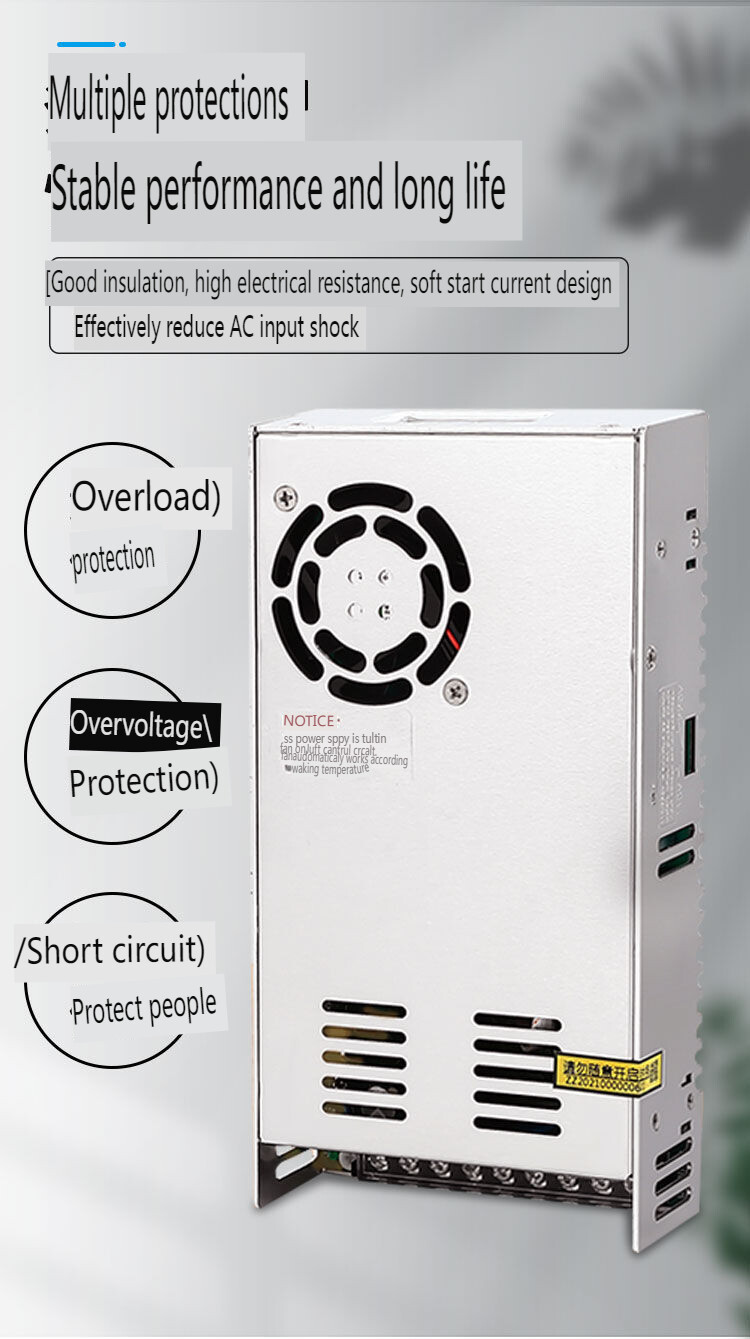

✅ Multi-layered security protectionBuilt-in overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP) to prevent device damage and enhance system safety.

Sex.

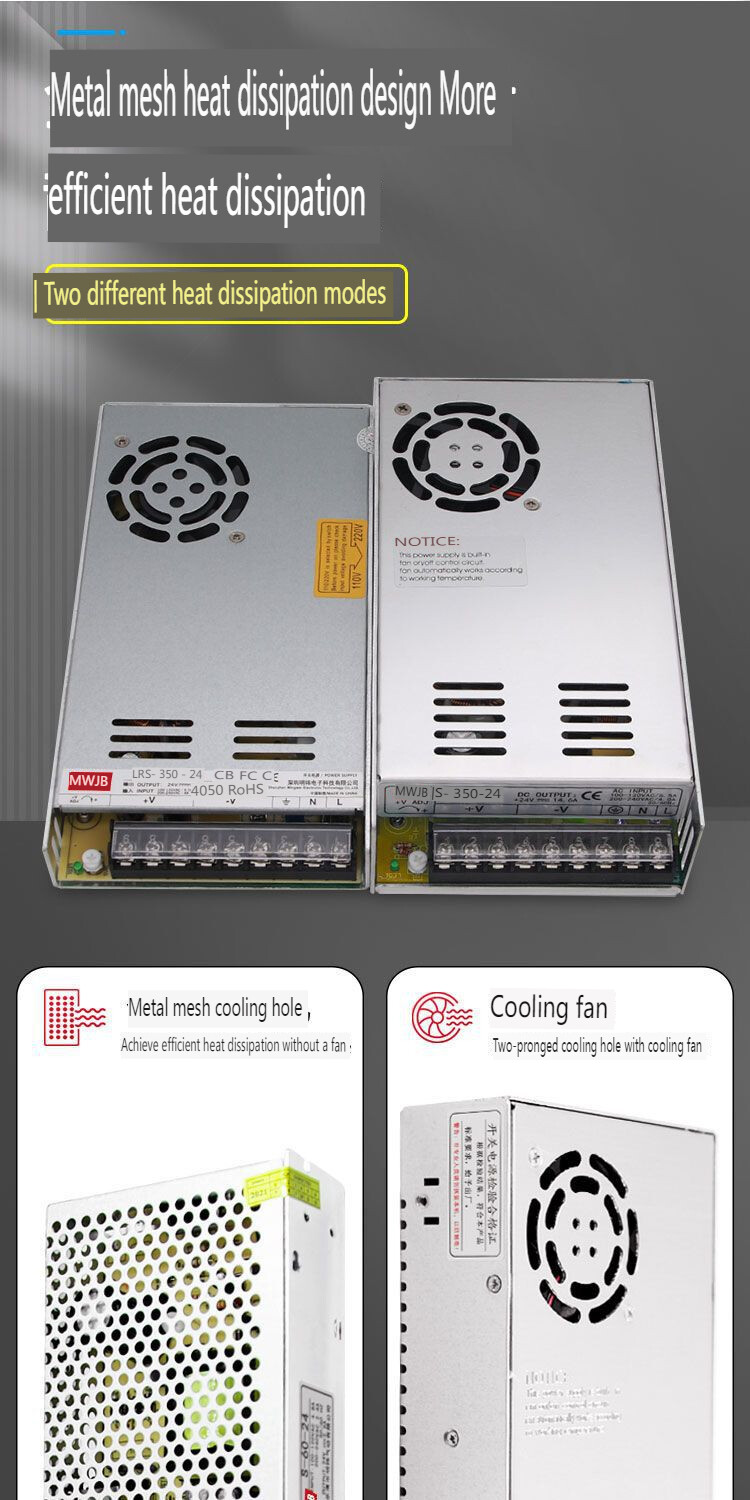

✅ Industrial-grade thermal design: Metal casing + smartTemperature-controlled fanEnsures stable performance under sustained high loads without thermal throttling or overheating, extending product lifespan.

✅ Cost-effective AlternativeCompetitive performance matching top international brands at a more affordable price—ideal for contractors, integrators, and DIY users.

Parameter Table (Structured Data for Search Engine Crawling)

Frequently Asked Questions (FAQs)

❓ Which scenarios are the Bochuang Space-Time S Series Switching Power Supplies suitable for?

This series of power supplies is widely used inUAV Defense and Strike System，Cell Phone Signal JammerEquipment, industrial automation control cabinets, security monitoring systems (e.g., NVRs, cameras)

head), LED strip drivers, communication base stations, server rooms, medical equipment, and other scenarios requiring stable DC power. Its wide voltage input and multiple protection mechanisms make it particularly

Suitable for industrial sites with significant power fluctuations or complex environments.

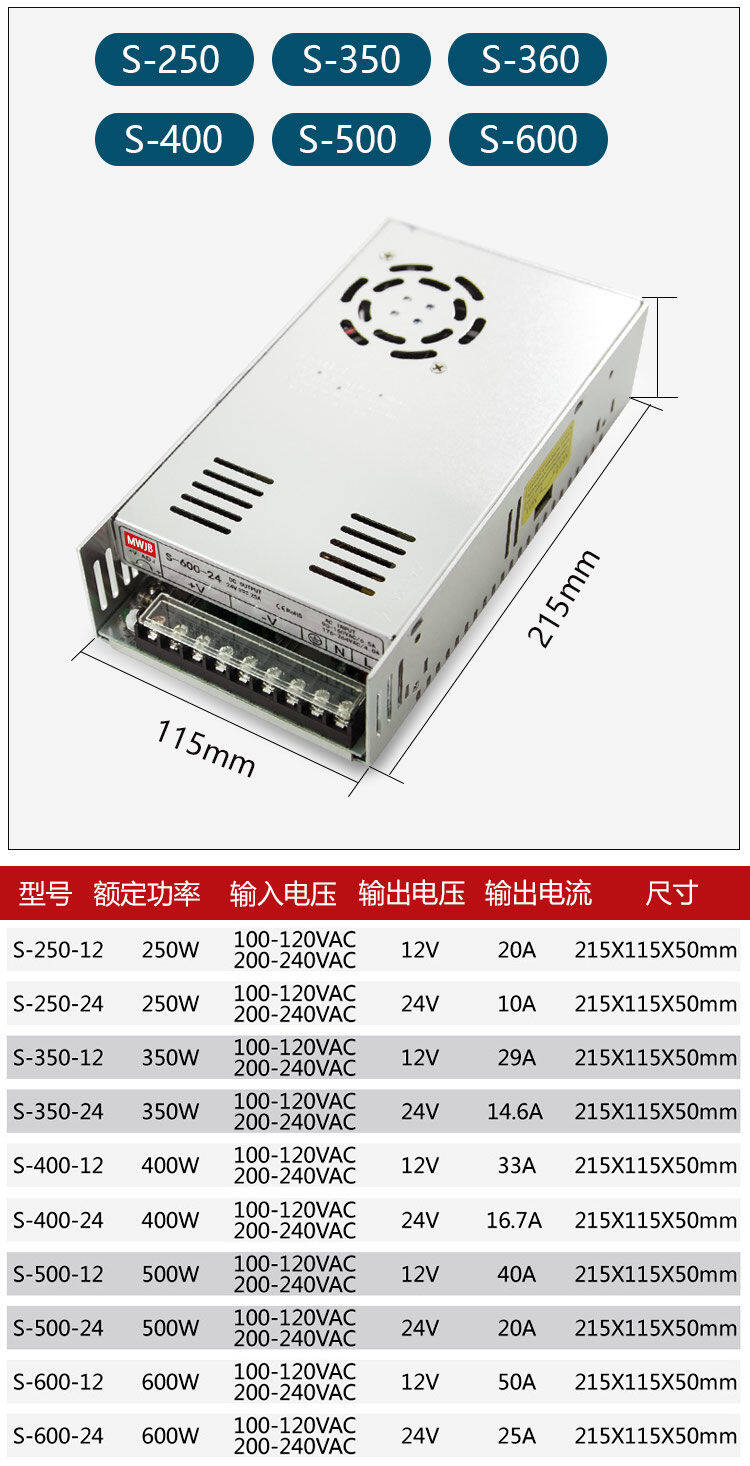

❓ What is the 4V output current for the S-600-24 model of 2?

The S-600-24 model delivers a maximum output current of 25A at a 4V output voltage, with a rated power of 600W. It can provide centralized power to multiple 24V devices, such as large-scale surveillance arrays and industrial...

Industrial motor drives or high-density LED lighting systems.

❓ Does this power supply support automatic switching between 110V and 220V?

Yes, the BOC S-Series.PowerSupports dual-voltage input of 100-120VAC and 200-240VAC. Some models allow manual switching via DIP switches, while others support auto-detection.

Dynamic recognition to ensure safe and stable operation across all global regions.

❓ What should I keep in mind during installation?

Ensure adequate clearance around the power supply for ventilation (at least 5 cm on all sides) and avoid blocking fan intakes. When wiring, observe polarity markings to prevent errors.

Reverse connection; before initial power-up, verify that the load power is withinPowerOperate within rated limits to avoid overloading.

❓ What are the advantages of the Bocom S Series power supply compared to other brands?

Bocuang Space-TimeThe S series delivers performance on par with top-tier global brands—such as efficiency >85% and ripple <100mV—at a more competitive price, thanks to its unified design.

For replacement and upgrade; includes full technical specifications and certification reports, ideal for bulk engineering procurement and system integration projects.
