BCSK-DJXD6 – 700W Industrial GradeMobile Signal Jamming SystemFor military units, prisons, detention centers, and large-scale military training bases

Product Overview

For high-security facilities (e.g., prisons, detention centers, military bases, and classified units) with stringent communication control requirementsBochuang Times BCSK-DJXD6Provided

Ultimate solution. This is a heavy-duty...High PowerMobile Signal Jamming SystemBuilt with a rugged metal chassis and modular design, delivering up to total output power of700W(Real

Actual power consumption: 1000W; total weight: 120KG. Designed for long-duration, high-intensity continuous operation.

This system not only comprehensively covers 2G/3G/4G/5G and WiFi bands but also integratesVHF/UHF Radio Frequency BandsandLojack Vehicle Tracking Frequencyeffectively prevents

Inmates use illicit radio equipment or hidden vehicle trackers to communicate and plan escapes. With high-gain directional antennas, the effective jamming radius can reach30-500

RiceEffectively severs all illicit communication channels between the inside and outside of the detention area, providing a robust guarantee for creating a "zero-signal" secure environment.

Key Features

1. 700W high-power output with wide coverage


   The system delivers a total output power of 700W, with individual modules ranging from 30W to 80W. Combined with the directional antenna array, it enables30-500 metersultra-long-distance screen

   Concealment, easily covering large prison yards or open areas with exceptional penetration capability.

2. Special Band Support (VHF/UHF/Lojack)


   Unlike standard consumer jammers, BCSK-DJXD6 is specially equipped withVHF (135-174 MHz)、UHF (400-470 MHz)andLojack (167-175 MHz)

   Module. This effectively blocks intercom communications and vehicle anti-theft tracking signals, eliminating high-tech jailbreak methods.

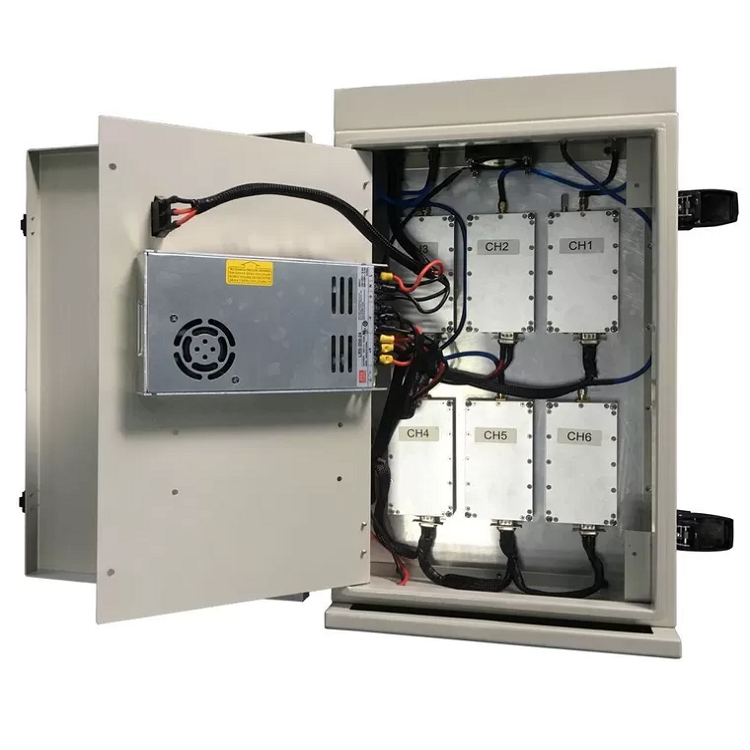

3. Highly customizable modular design


   The system supports flexible configuration of up to 10 bands. Customers can freely combine CDMA,

   Supports any module including GSM, DCS, 3G, 4G LTE, GPS L1, WiFi (2.4G/5.8G) for precise targeting while avoiding interference with unrelated frequency bands.

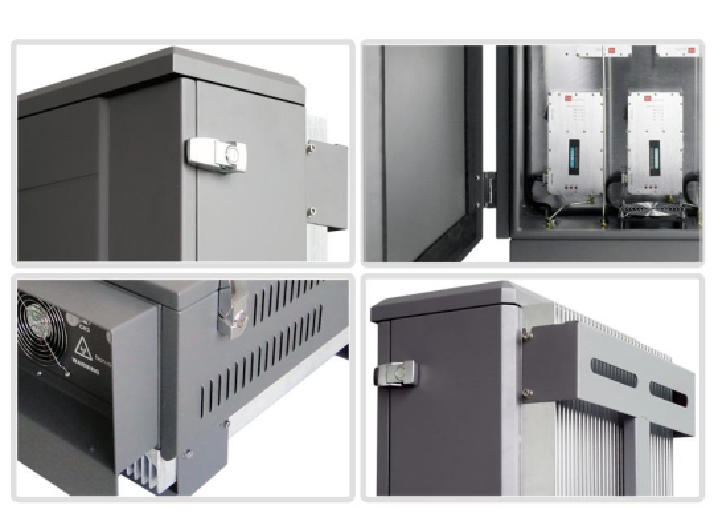

4. Industrial-Grade Stability and Thermal Management


   The complete unit weighs 120 kg and features a heavy-duty metal chassis with an optimized internal layout and professional-grade components.Power Module(AC 220V/110V or DC 27-28V, optional). This heavy-duty...

   The design ensures exceptional stability and durability even in harsh environments.

5. Complete turnkey engineering accessories


   includesDirectional AntennaPower cord, mounting bracket,RF cablesComplete set of accessories included (total equipment weight 168 kg) for quick deployment and installation by contractors.

   Reduces on-site debugging complexity.

Technical Specifications

Frequently Asked Questions (FAQ)

Q1: Is the effective range of this jammer really 100 meters?

A: Yes, with a weak background signal (≤-75 dBm) and the included high-gain directional antenna, the effective shielding radius can reach 30-100 meters. If

When the base station signal is very strong (e.g., right outside the window), the shielding distance will decrease accordingly. We recommend adjusting the antenna angle based on an on-site survey.

Q2: Can it block walkie-talkie signals?

A: Absolutely. This model is specifically equipped withVHF (135-174 MHz)andUHF (400-470 MHz)Modules are commonly used frequency bands for both police and civilian walkie-talkies, capable of...

Effectively blocks illegal radio communications within the prison area.

Q3: How is the device's cooling performance and noise level?

A: A dedicated airflow channel is built into the device to handle a total power consumption of 1000W.RadiatorSystem. Although it produces fan noise, this is acceptable given its typical installation location within the machine

Installed in a room, on the roof, or in a dedicated control cabinet to ensure noise does not affect normal office areas. The metal housing design ensures long-term thermal stability during operation.

Q4: Can we select only a subset of the frequency bands?

A: Yes. Bochuang Space-Time supports high levels of customization (Customizable). You can select specific frequency bands from the list (e.g., block only 4G and...

WiFi, or add LoJack); we'll adjust the power and price based on your configuration.

Q5: Is installation difficult? Do I need a professional?

A: Given that the device weighs 120 kg and involvesRF antennaConnection: Professional installation is strongly recommended. We provide a complete set of mounting brackets and RF components.

Cable and instructions to ensureAntennaOrient correctly for optimal shielding.
