Bocchuang Time and Space BSK-Y50 5.8GHz Bandwidth RF Power Amplifier Module 50W Linear AmplifierDrone CountermeasuresDedicated RF Amplifier

Product Overview

The BCSK-Y50 is designed specifically for the 5.8GHz frequency band.GaN Power Amplifier Module, rated output power 50W, operating frequency range 5720-

5850MHz, suitable forDrone CountermeasuresFPV video transmission enhancement, industrial wireless communication, and other high-demand scenarios. The module operates on DC 24V-28V power supply with working current...

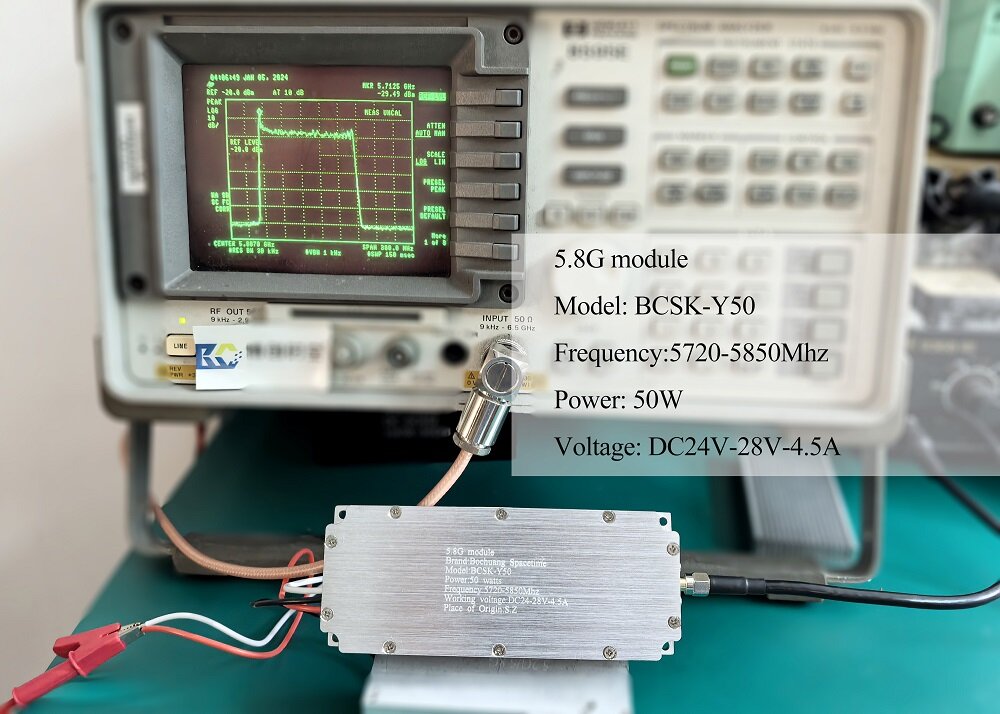

4.5A, featuring an integrated isolator and over-temperature protection for stable operation under high load. Verified via spectrum analyzer testing, it delivers excellent output flatness—ideal for building high-performance systems.

The ideal core component for 5.8GHz RF systems.

Key Features

• High Power Density: 50W output power in a compact form factor, ideal for space-constrained airborne or vehicle deployments.

• Wideband Coverage: 5720-5850 MHz fully covers 5.8GHz ISM bands, compatible with mainstream drones and video transmission devices.

• Advantages of GaN Technology: Utilizes gallium nitride (GaN) semiconductor technology for higher efficiency, lower thermal resistance, and extended lifespan.

• Smart Protection MechanismBuilt-in over-temperature, over-current, and VSWR protection to prevent module damage under abnormal conditions.

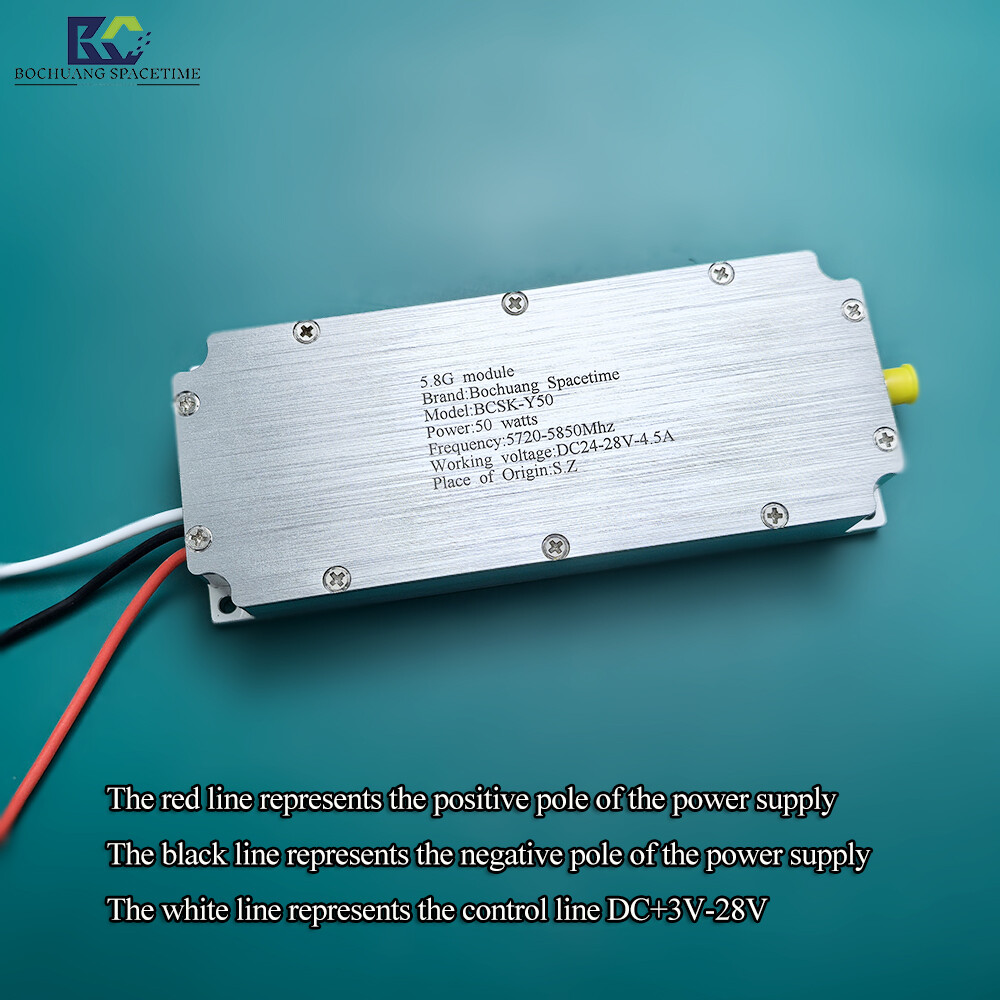

• Simplified wiring design: Red and BlackWhite3-wire power and control with parallel expansion for easy system integration.

• Industrial-grade reliabilityAluminum alloy housing with anodized finish for vibration resistance, corrosion protection, and durability in harsh outdoor environments.

Parameter Table

Q&A

Q1: Does the BCSK-Y50 module support parallel operation?

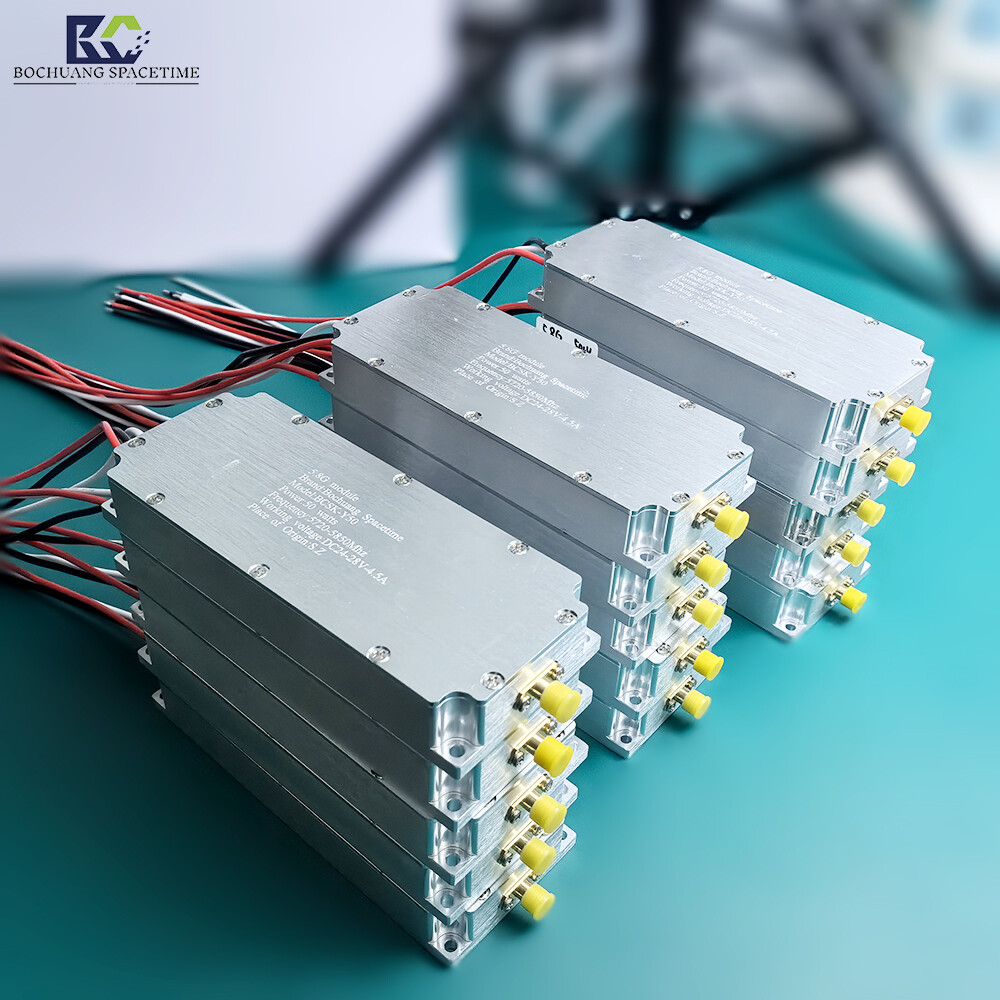

A1: Yes. The module is designed for parallel expansion; white control lines synchronize triggering to enable power stacking across multiple modules, meeting higher power requirements.

Q2: Does this module require an external heatsink?

A2: The module features an integrated high-efficiency cooling structure; however, we recommend adding a large external heatsink during sustained full-power operation.Serrated Heat SinkandCooling Fanto extend service life and maintain stable performance.

Q3: Is the BCSK-Y50 compatible with mainstream drone countermeasure systems?

A3: Fully compatible. Its 5720-5850 MHz frequency band covers the main communication bands of major drones such as DJI and Autel, allowing it to serve directly asDrone Countermeasure EquipmentPower

Zoom module.

Q4: What is the input impedance of the module?

A4: Standard 50Ω input impedance, compatible with mainstream VCO signal sources andAntennaSystem requires no additional matching circuitry.

Q5: Does this product include technical support and after-sales service?

A5: Includes comprehensive installation guides, wiring diagrams, and remote technical support. Direct from Shenzhen factory with customizable development and bulk ordering options.
