Bochuang Shikong BSK-Y1 0 5.8GHz Power Amplifier Module 10W Wideband RF Amplifier 5720-5850MHz UAV Countermeasure and FPV Video Transmission Dedicated
The BSK-Y10 is a compact RF power amplifier module designed for the 5.8GHz frequency band. With a rated output power of 10W and a working frequency range of 5720-5850MHz, it is ideal for drone countermeasures, FPV video transmission enhancement, amateur radio communications, and industrial wireless systems. Powered by DC 24V-28V with a current draw of 2.8A, the module features an integrated isolator and over-temperature protection to ensure stable operation under high load. Verified via spectrum analyzer testing, it delivers flat output spectrum and excellent spurious suppression, making it the core component for building high-performance 5.8G RF systems.
In Stock (500units
Boxin Space-Time BSKS-Y1 0 5.8GHzAmplifier Board Module10W Broadband RF Amplifier 5720-5850MHz for Drone Countermeasures and FPV Video Transmission
Product Overview
The BCSK-Y10 from Bochuang Space-Time is a compact unit designed for the 5.8GHz frequency band.RF Power Amplifier Module, rated output power 10W, operating frequency range 5720-
5850MHz, designed for drone countermeasures, FPV video link disruption, amateur radio communications, and industrial wireless defense systems.ModulePowered by DC24V-28V, operating current
Flow 2.8A with built-in isolator and over-temperature protection ensures stable operation under high load. Product validated by spectrum analyzer measurements, delivering flat output spectrum and superior spurious suppression.
The 5 is the ideal core component for building high-performance 8G RF systems.
Key Features
High-Power Output: Rated 10W continuous output power, meeting mid-range jamming and signal enhancement requirements.
Wideband Coverage: Precisely covers the mainstream 5720-5850MHz and 5.8G bands, compatible with FPV,Drone Countermeasuresand amateur radio experimental applications;
High-stability designBuilt-in isolator and over-temperature protection for safe, long-term high-load operation.

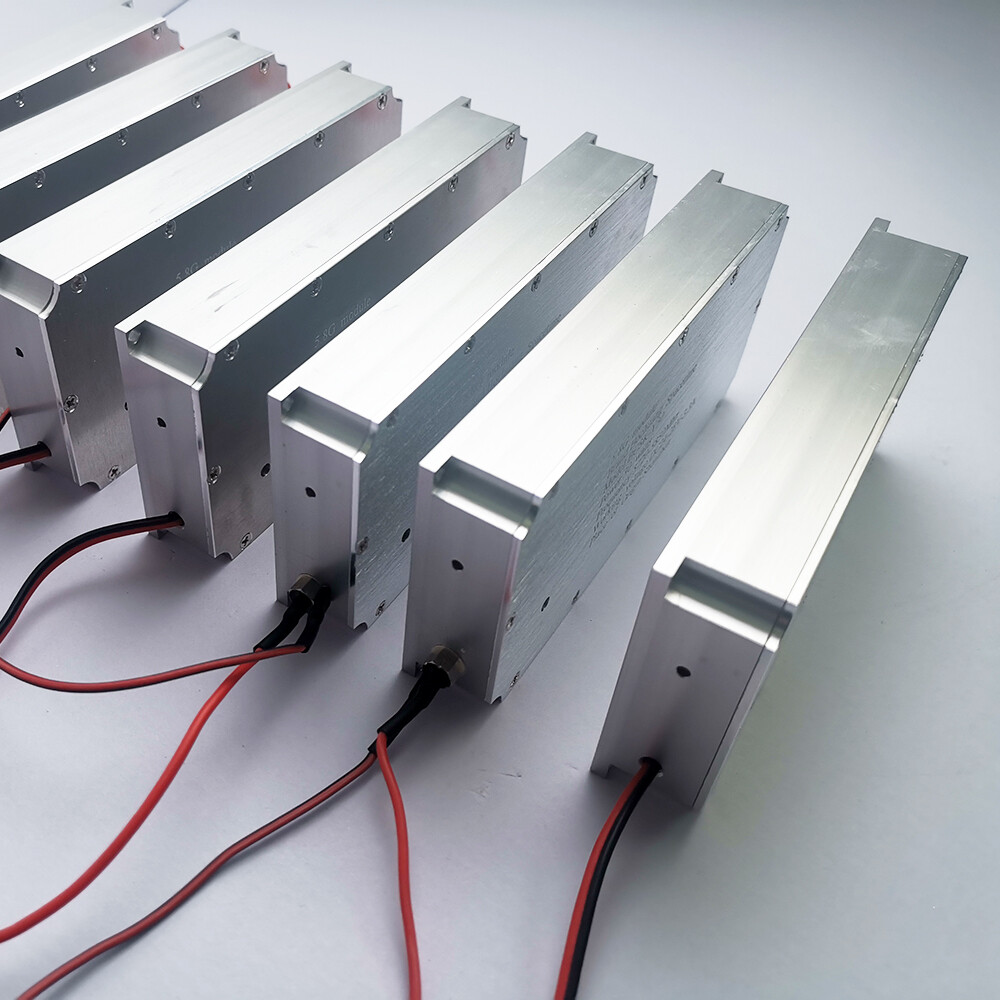

Compact design: Metal housing with heat sink fins for easy integration into compact devices;

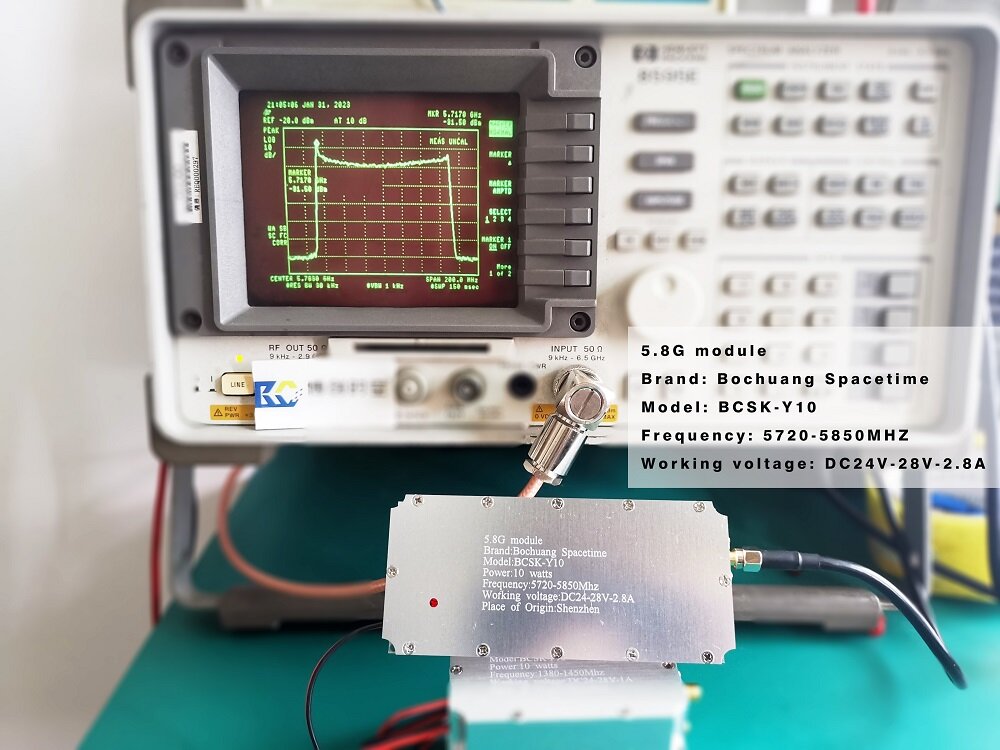

Verified in practice: Spectral analyzer tests show output flatness of ±1dB and spurious suppression better than -40dBc.
Parameter Table
Parameter Item | Value/Description |
|---|---|
Model | BCSK-Y10 |
Brand | Bochuang Spacetime |
Operating Frequency | 5720–5850 MHz |
Output Power | 10W (Continuous) |
Supply Voltage | DC24V–28V |
Operating Current | 2.8A |

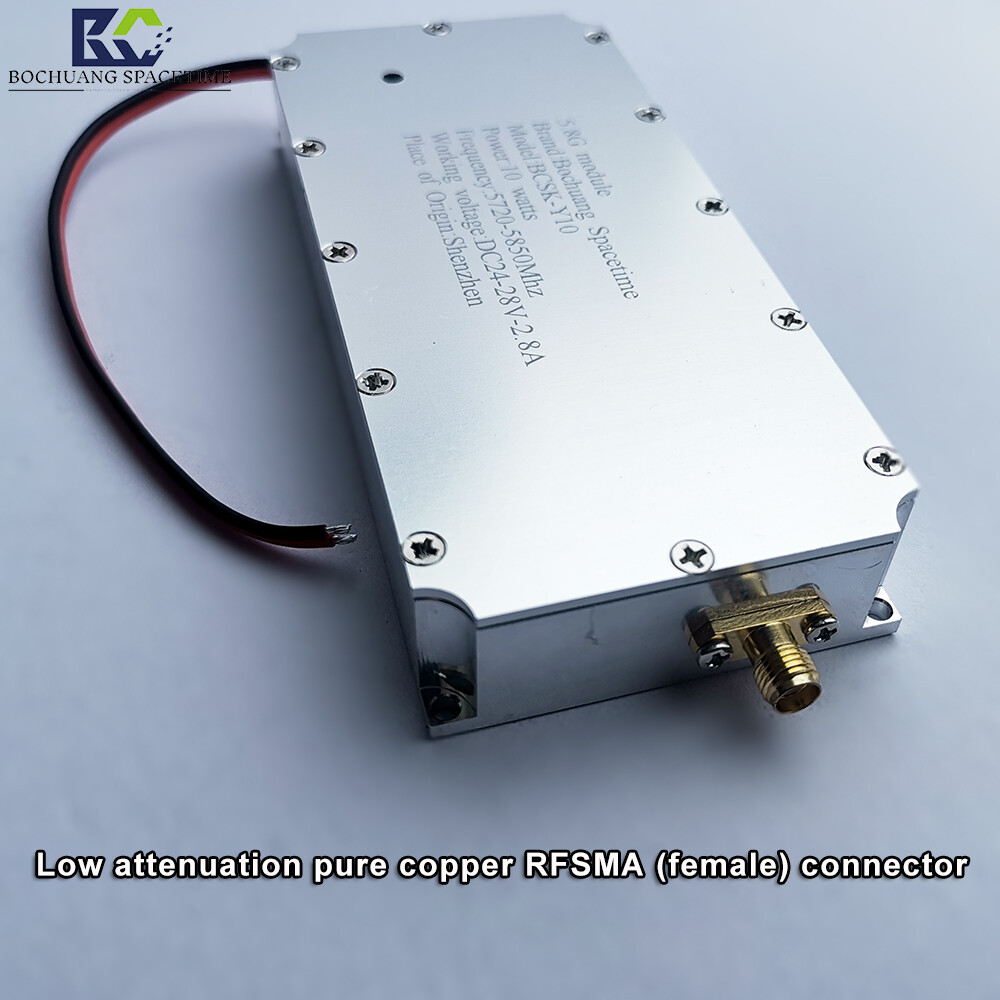

Interface Type | SMA Female (RF Input/Output) |
Protection Features | Over-temperature protection, isolator |
Size | Approx. 60 × 40 × 15 mm (excluding connectors) |
Use Cases | Drone CountermeasuresFPV video transmission, amateur radio |
Frequently Asked Questions (FAQ)
Q1: Is this 5.8GHz amplifier module suitable for use in drone jamming systems?
Yes, the BCSK-Y10 is designed for the 5.8GHz frequency band with an output power of 10W. It effectively disrupts the video transmission and remote control links of mainstream consumer drones, making it ideal for building a portable...
FormulaDrone Jammeror an ideal choice for vehicle countermeasure devices.
Q2: Does the module support continuous long-term operation?
A: Supported. The module features built-in over-temperature protection and isolation, delivering up to 10W of continuous output power with DC4-28V input. We recommend pairing it with a Bocom Space large-scale unit.Serrated Heat SinkorCold
Ceiling fanUse to extend lifespan.
Q3: Can it be used to enhance FPV video transmission signals?
No. This module covers the full noise signal source from 5720 to 585 MHz, fully matching mainstream FPV transmission bands. Signal shielding is suitable for aviation-controlled areas.
Not suitable for long-range aerial photography or competitive scenarios.
Q4: Is an external matching circuit required?
No. The module has a built-in VCO signal source and isolator; users only need to connectAntennaConnect SMA connector toPowerPlug-and-play operation with power supply, reducing system integration complexity.
Q5: Does the product include technical documentation or driver support?
A: Provides a complete PDF wiring diagram and installation manual to help engineers quickly deploy and optimize system performance.
