Bochuang Space-Time BSK-PBTX5200 5.8GHz Aluminum Alloy Flat Panel Directional Antenna | 18dBi High Gain, 10W-100W High Power, SMA Connector. Ideal for Drone Jamming, Wireless Bridges, and FPV Signal Boosting
The BCSK-PBTX5200 is a high-performance 5.8GHz single-frequency aluminum alloy panel directional antenna. Operating within the 5100-5300 MHz frequency range, it delivers 18 dBi gain and supports continuous power input from 10W to 100W, with a VSWR ≤ 1.5, ensuring high energy conversion efficiency and system stability. Built with a rugged aluminum alloy substrate and precision microstrip array structure, it offers excellent heat dissipation and wind resistance, making it ideal for outdoor or industrial deployments. Featuring an SMA male connector, it integrates easily into handheld jammers, vehicle-mounted systems, fixed base stations, or FPV receivers. Widely used in drone countermeasures, long-range wireless bridges, HD video transmission, and security surveillance, this high-power directional antenna is the preferred solution for RF engineers and system integrators.
In Stock (5000units

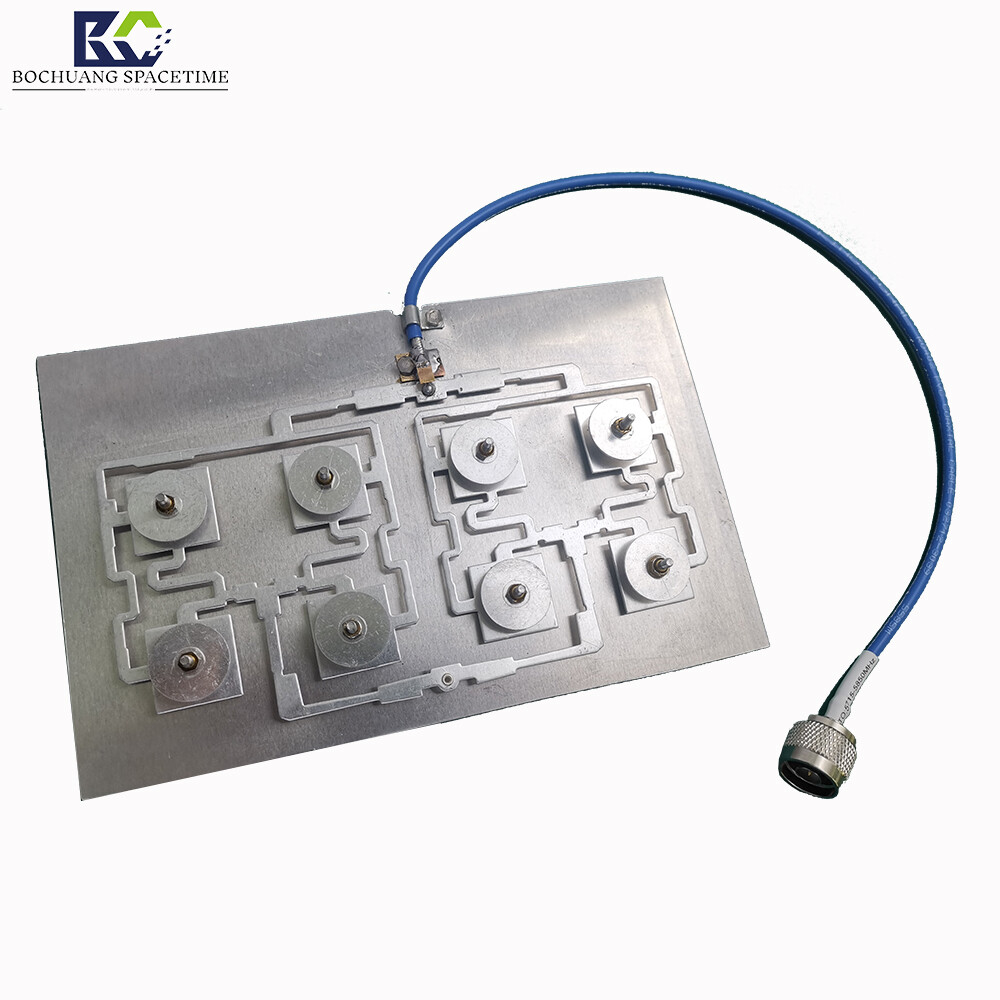

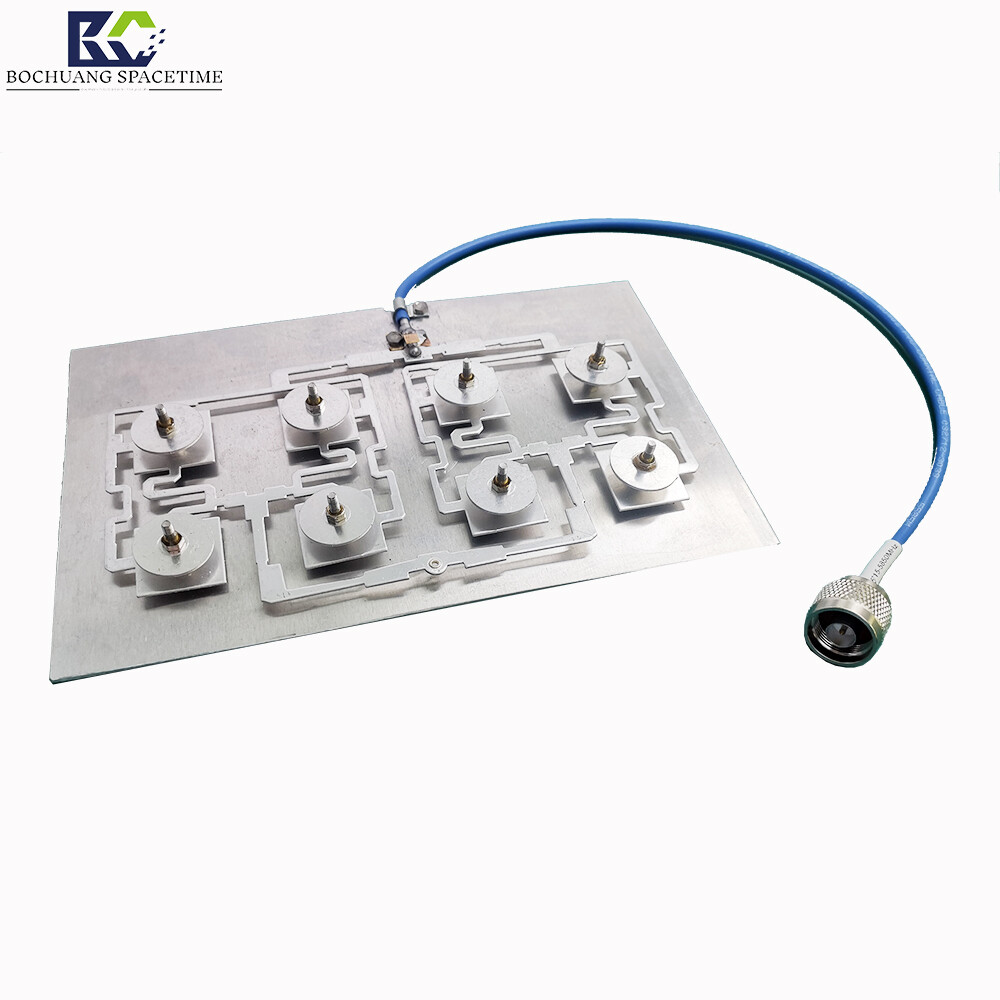

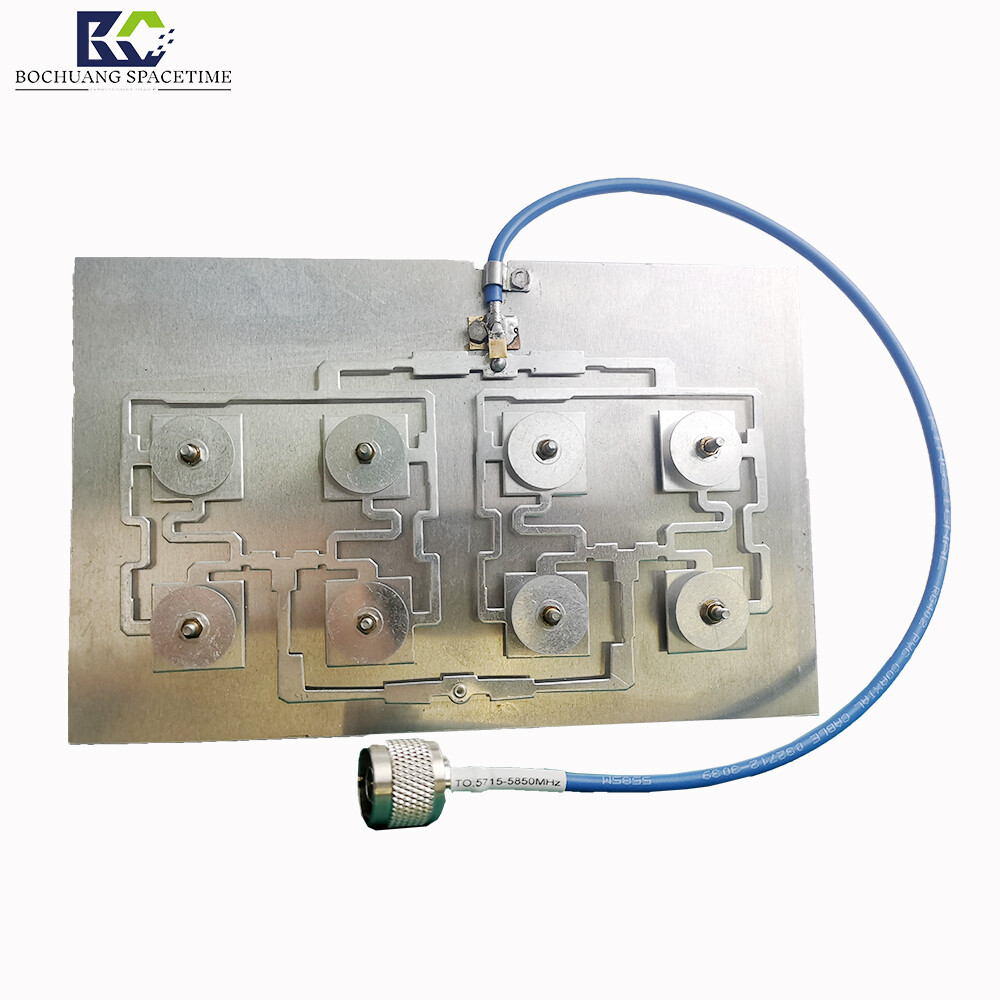

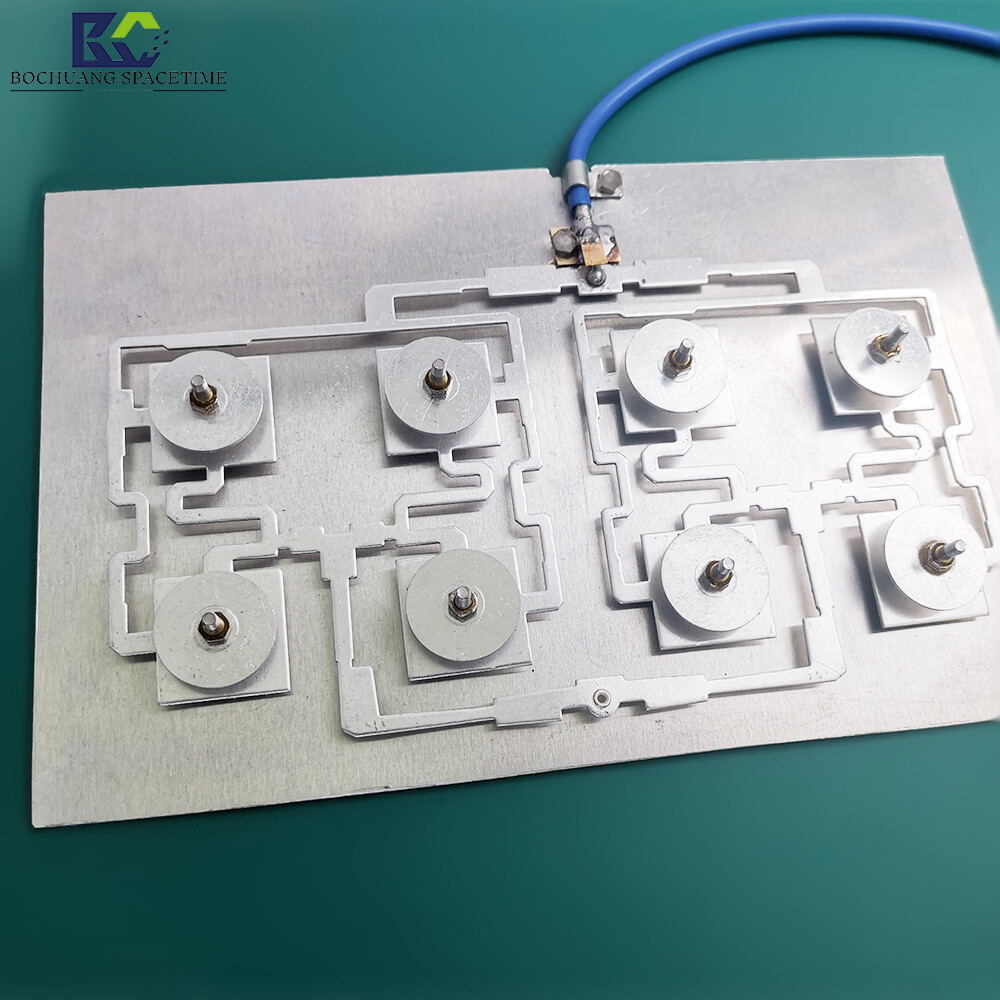

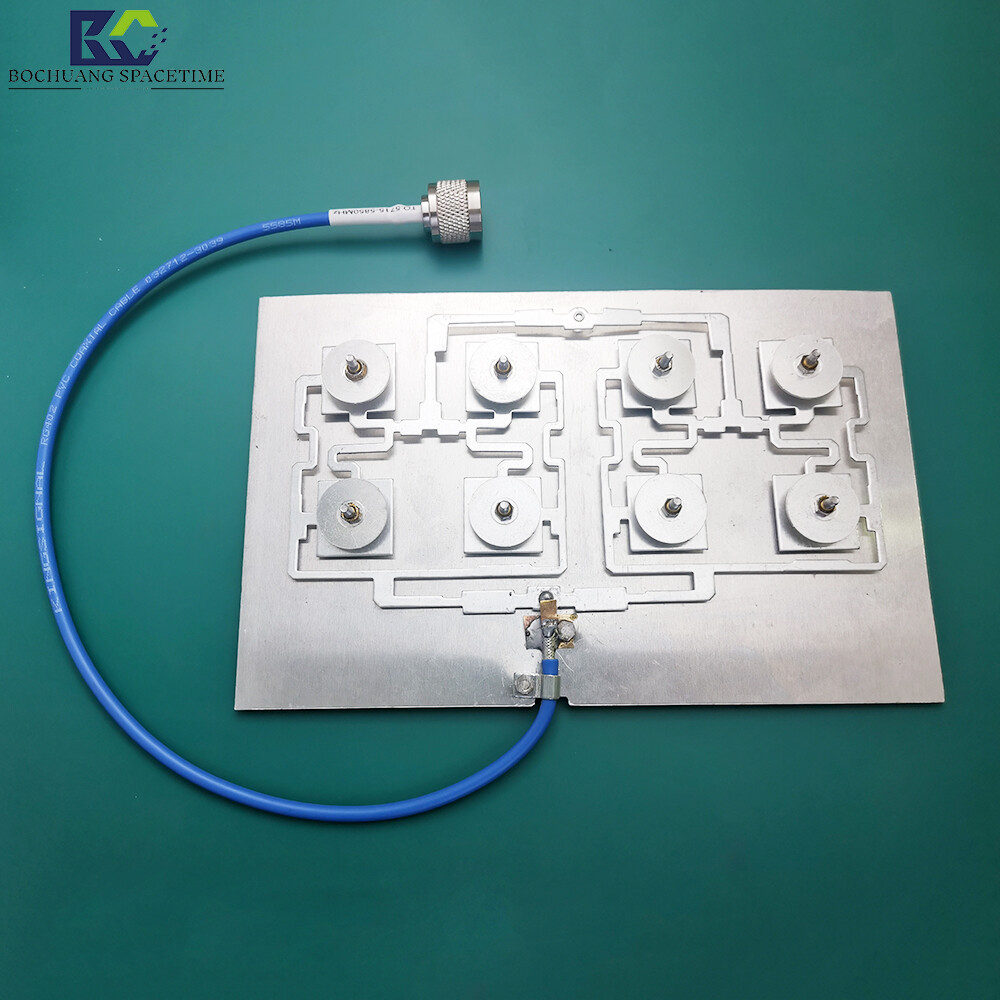

Bochuang Spacetime 5.8GHz Aluminum AlloyTablet Directional Antenna(BCSK-PBTX5200)
1. Key Selling Points

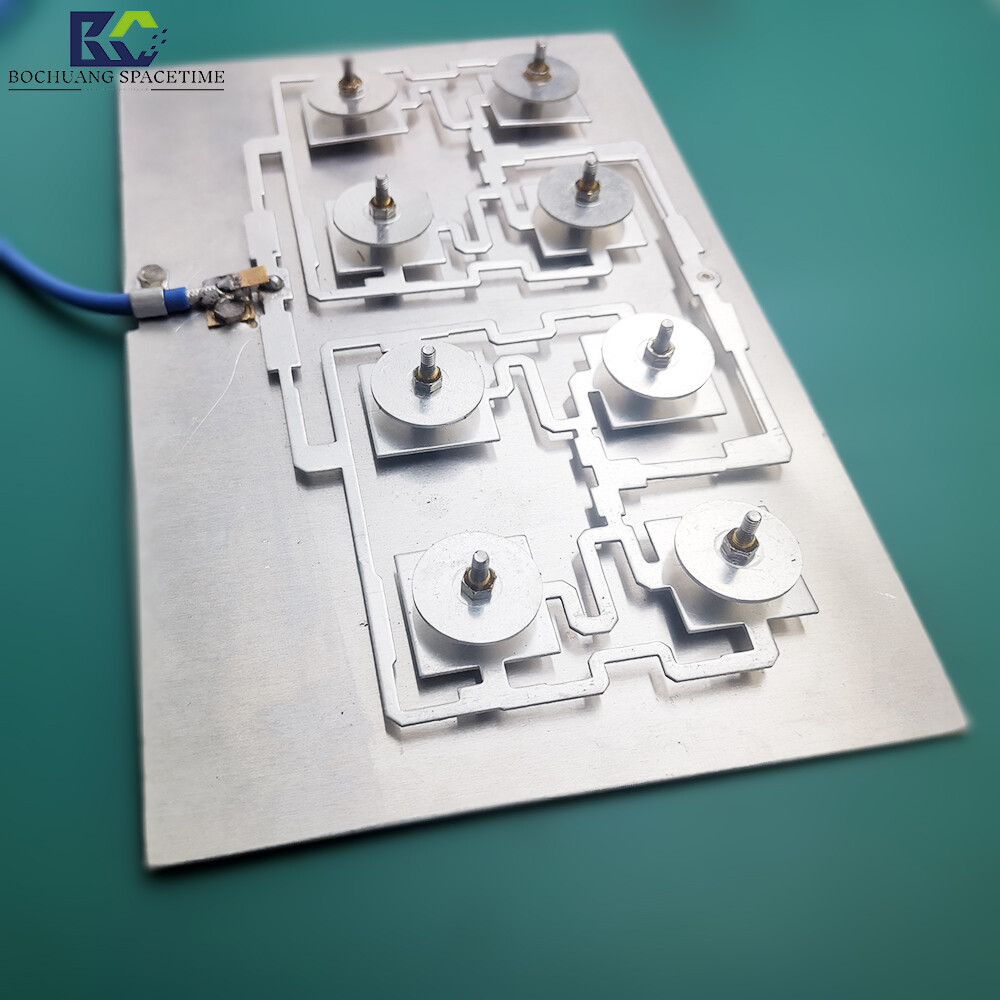

Industrial-Grade Aluminum Alloy Substrate:Features a full aluminum substrate design that serves as both the radiating ground plane and an efficient heat sink, ensuring long-term stability at high power up to 100W.
Maintain constant operation without temperature rise.
Ultra-High Gain Focus1 8dBi high-gain design with directional beam effectively extends 5.8GHz band signal coverage or interference range.
Wideband Coverage:Perfectly covers the 5100-5300 MHz band, compatible with mainstream 5.2 GHz WiFi and drone video transmission/control bands.
Low-loss transmission:Optimized microstrip feed network design with VSWR ≤ 1.5 for efficient RF energy radiation.
2. Detailed Technical Specifications

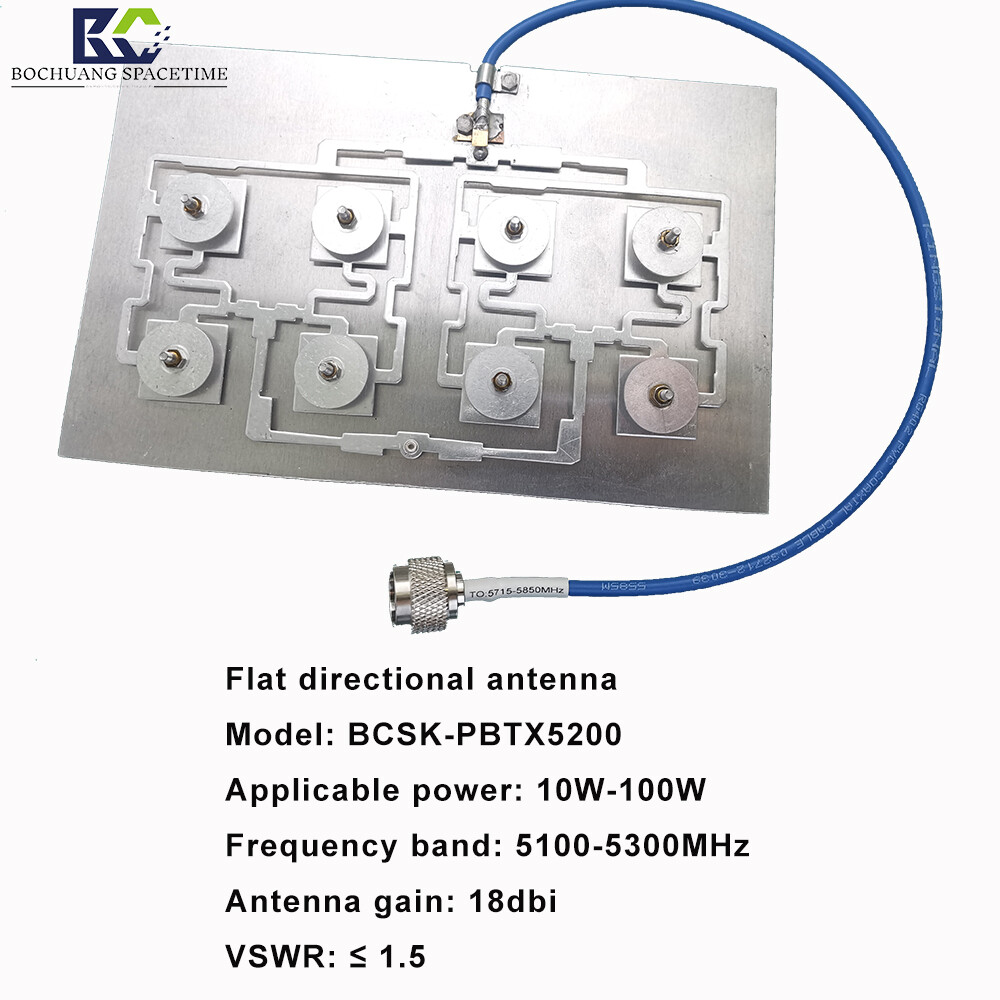

Parameter Items | Detailed Metrics | Notes |
|---|---|---|

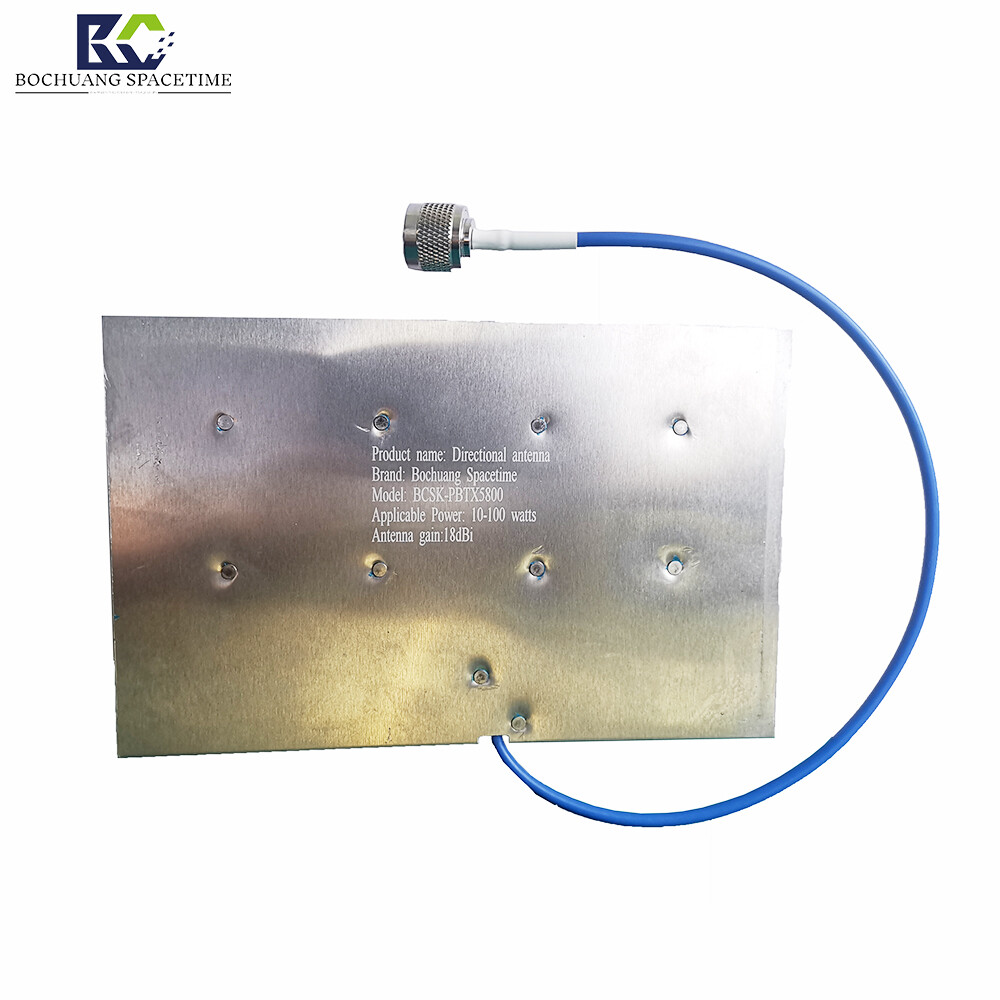

Product Model | BCSK-PBTX5200 | 5.8G Aluminum Alloypanel antennaSeries |
Operating Frequency | 5100 - 5300 MHz | Overwrite 5 2G mainstream bands |
Antenna Gain | 18 dBi (Typical) | High-Gain Directional |
Horizontal Beamwidth | ≤ 30° (Typical) | Narrow beam, highly directional |
Vertical Beamwidth | ≤ 30° (Typical) | - |
Voltage Standing Wave Ratio (VSWR) | ≤ 1.5 | Excellent impedance matching |
Input Impedance | 50 Ω | Standard RF Impedance |
Polarization Mode | Linear Polarization | Vertical or horizontal (depending on installation) |
Maximum Power Capacity | 100W (CW) | CW power; pulse power can be higher |

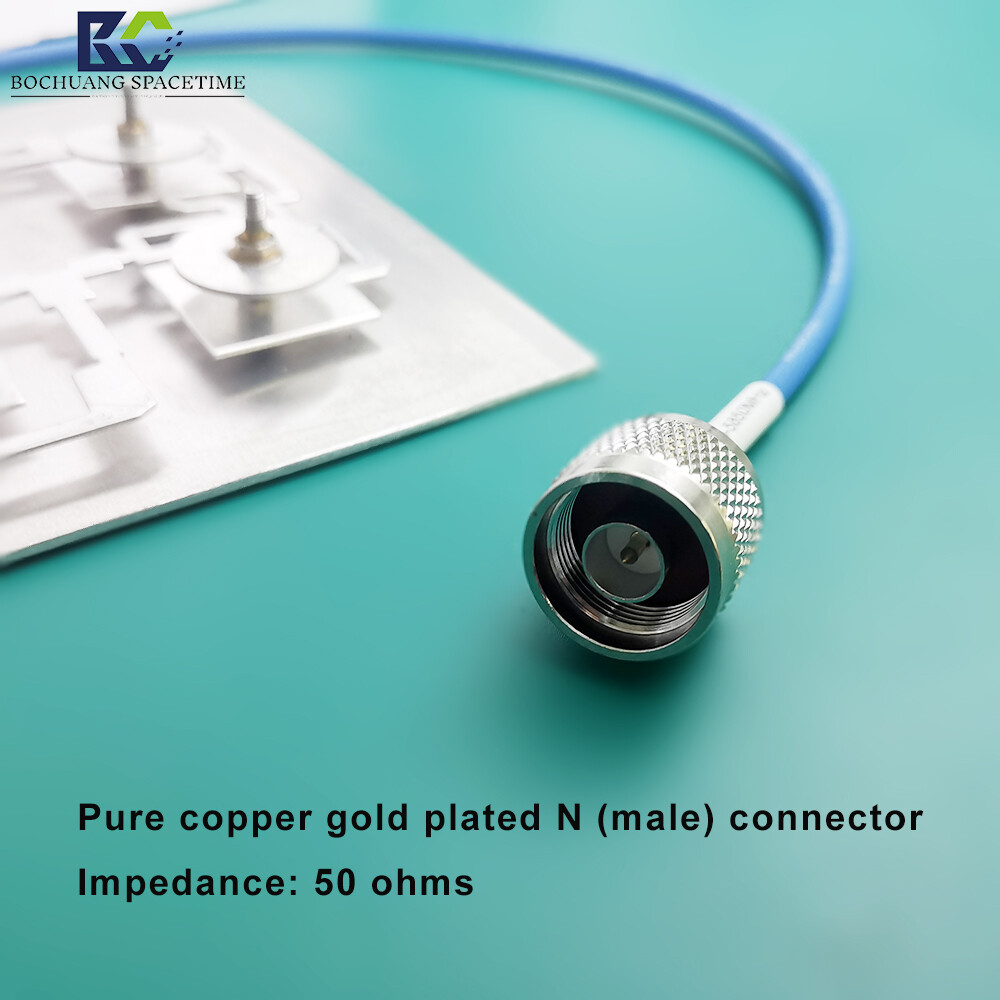

Interface Type | SMA-K (SMA Female) / N-J (Optional) | Image shows an SMA female adapter cable. |
Dimensions | Approx. 160 x 120 mm (est.) | Compact Design |
Operating Temperature | -40℃ ~ +85℃ | Built for harsh environments |
3. Product Deep Dive & Use Cases
Why choose an aluminum flat-panel antenna?
Traditional FR4PCB AntennaDifferentBCSK-PBTX5200Uses an aviation-grade aluminum alloy as the substrate. This design offers two core advantages:
Superior heat dissipation:When handling high-power RF input ranging from 10W to 100W, the aluminum plate rapidly dissipates heat to prevent performance degradation or damage caused by antenna overheating.
Bad.
High Strength & Weather Resistance:The metal structure is robust and durable, offering strong wind resistance. Ideal for demanding environments such as outdoor security and mobile vehicle platforms.
Typical Use Cases
Drone Countermeasure System(UAV Countermeasures):Precisely jam or spoof consumer drones operating on the 5 2G frequency band.
Long-Range Wireless Bridge:Transmits high-definition video or data between two points using 5 8G. The 1 8dBi gain significantly extends the link range.
Budget.
FPV Video Transmission Enhancement:Use at the ground station to receive high-definition video feeds from long-range drones.
RFID and IoT Testing:High-gain reference antenna for laboratory or field use.
4. Frequently Asked Questions (FAQ - SEO Optimized)
Q: Does this antenna support the full 5.8G band?
A: This BCSK-PBTX5200 is primarily designed for5100-5300 MHzFrequency optimization. If you need coverage for 5700-590 MHz (typically used for drone remote control), please contact
We need another BCSK-PBTX5800.panel antennaorDual-band panel antennaVersion.
Q: Does the antenna get hot at 10W power?
A: Thanks to the aluminum alloy base, its heat dissipation efficiency is far superior to that of standard units.PCB antenna. Under continuous operation at 100W, temperature rise is maintained within safe limits; however, it is recommended to maintain...
Good ventilation.
Q: Can the API be customized?
A: Standard configuration typically includesN-type connectorInterface. Based on your needs, we offer F-type, TNC-type, or custom adapter cable services.
