BCSK-PBTX1200 1.2G Directional Panel Antenna, 8dBi High-Gain N-Type Male RF Antenna for UAV Communication and Wireless Backhaul

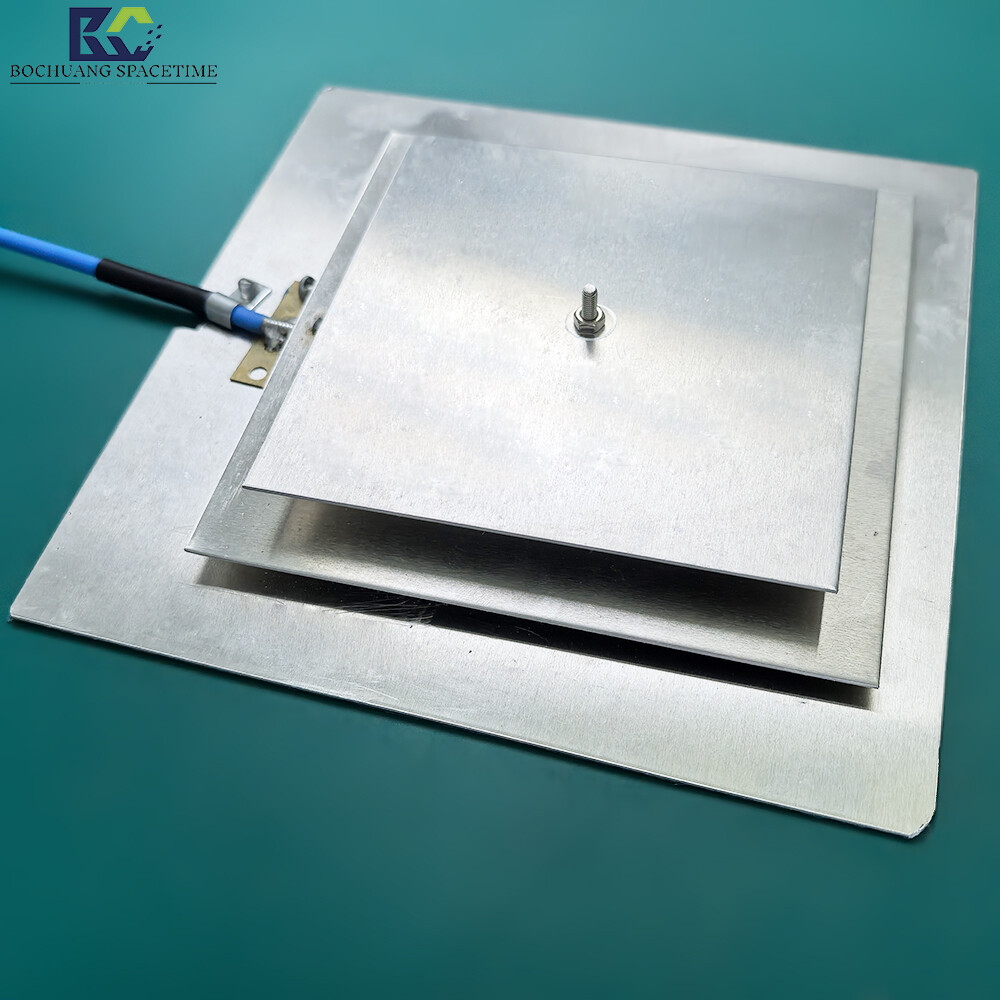

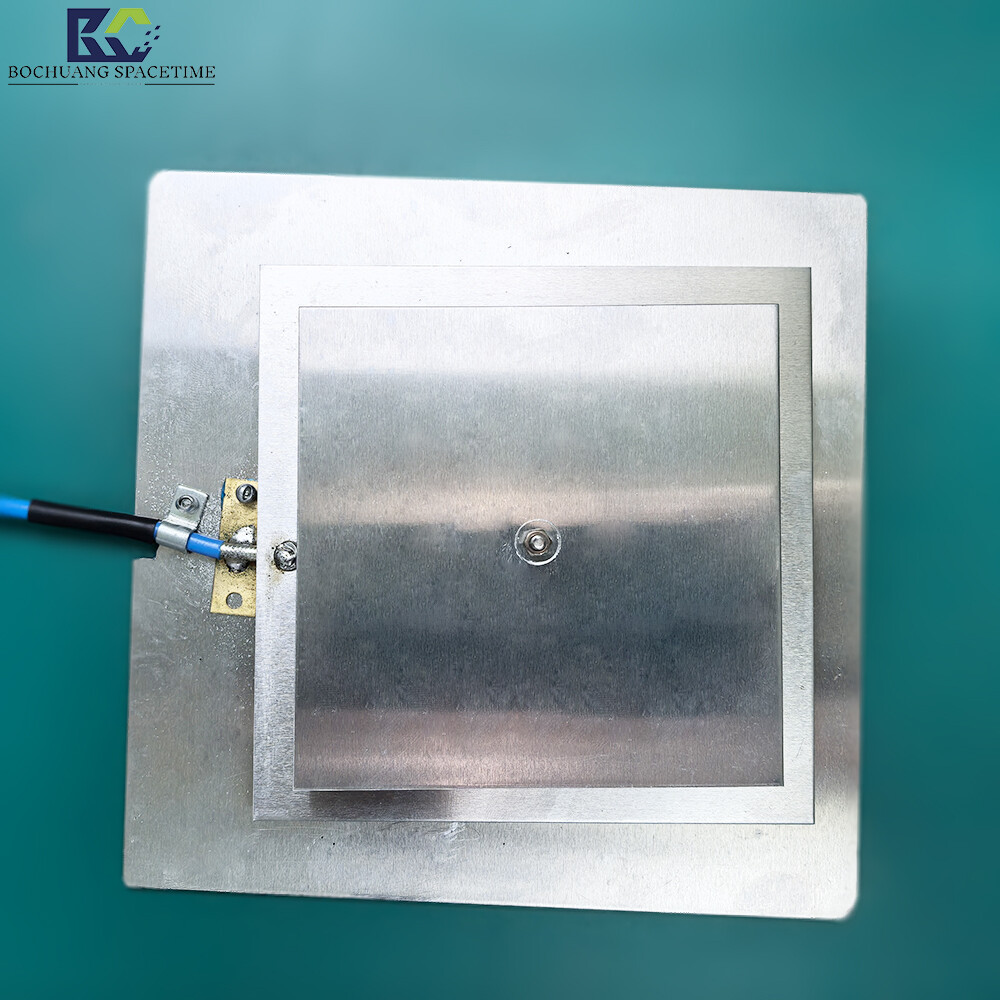

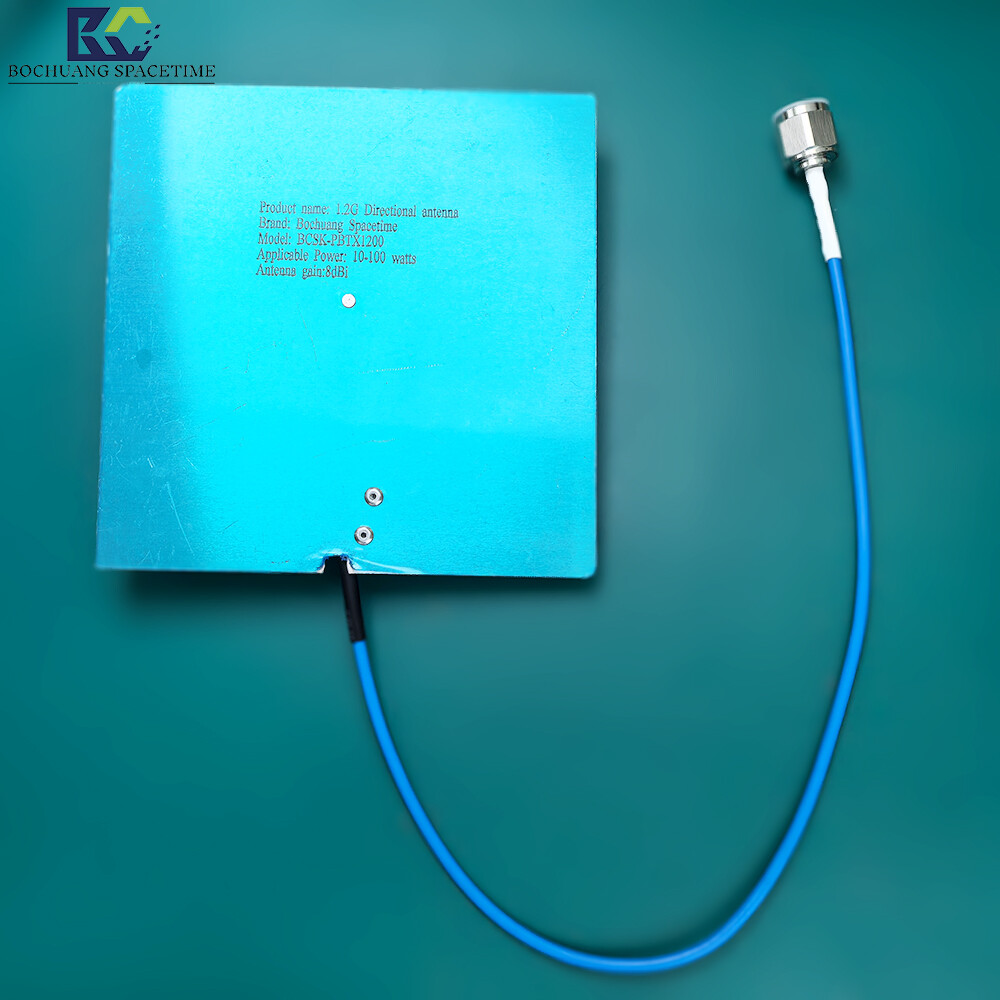

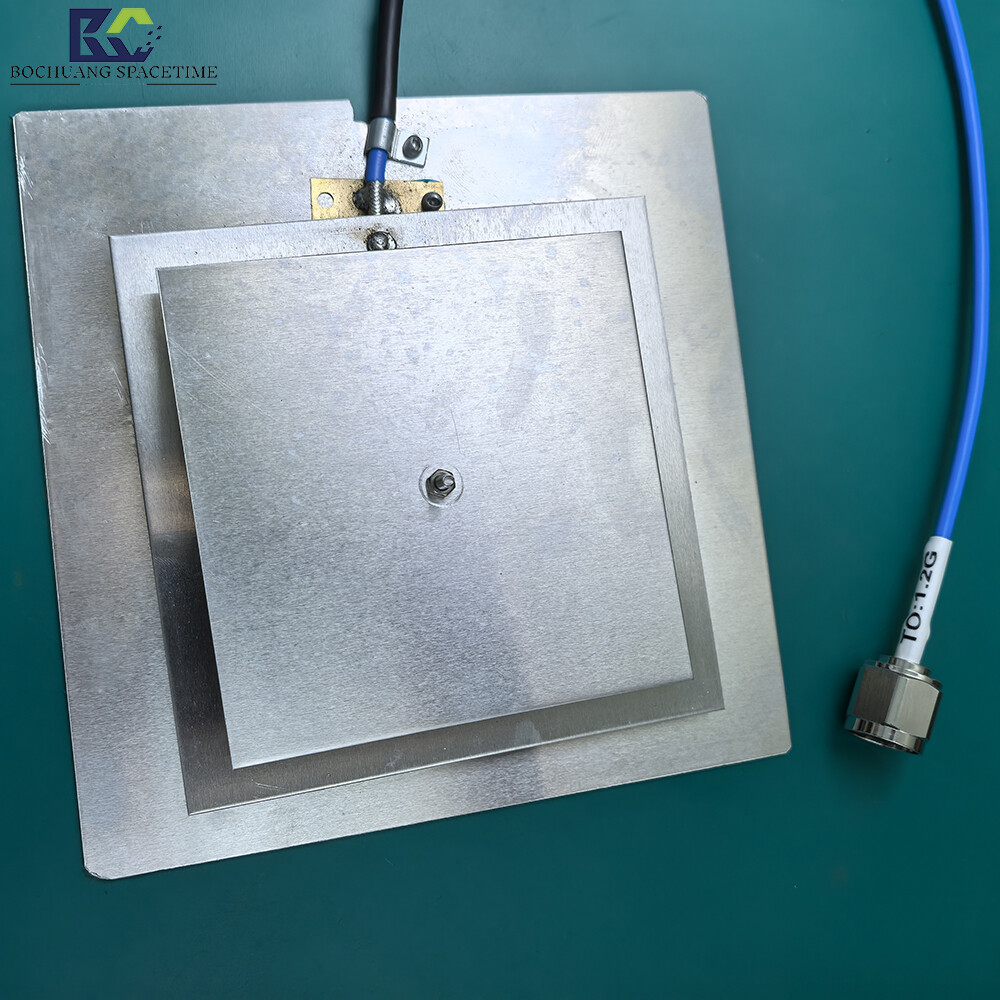

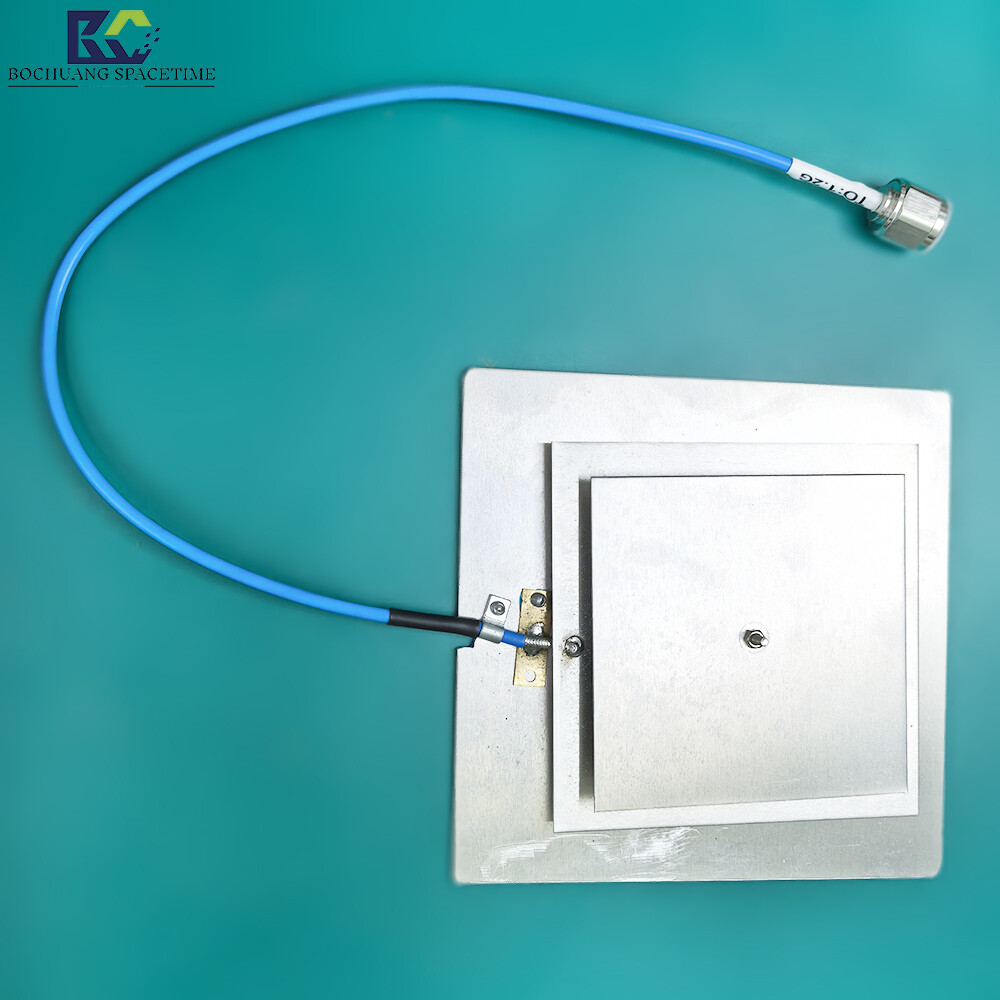

The BCSK-PBTX1200 is a directional panel antenna designed for the 1.2GHz band, developed by Bochuang Space-Time. Operating from 1100MHz to 1300MHz with 8dBi gain, it features a standard 50Ω impedance and an N-type male connector. Ideal for point-to-point links, wireless backhaul, industrial IoT, and remote monitoring, its compact 170×150×30mm footprint and 500mm cable make it easy to deploy in space-constrained environments—perfect for building stable, high-gain wireless connections.
In Stock (40units
Product Overview
BCSK-PBTX1200Designed specifically for the 1.2GHz frequency bandDirectional Panel AntennaDeveloped by Bochuang Space-Time. This antenna operates at the
Coverage rate1100MHz-1300MHz, with gains up to8dBi, using 50Ω standard impedance andN-type male connectorSuitable for point-to-point communication, wireless backhaul, and industrial IoT.
network and remote monitoring scenarios. Its compact170×150×30mmSize &500mmLong cable design enables flexible deployment in space-constrained environments for building a stable...
An ideal choice for fixed, high-gain wireless links.
Performance Features
High-gain directional radiation: 8dBi gain ensures focused signal projection, significantly improving long-range communication quality and interference resistance.
Wideband CompatibleCovers 1100-1300 MHz, supports mainstream 1.2G communication protocols, and meets diverse deployment requirements.
Standard impedance matching: 50Ω impedance design ensures seamless integration with mainstream RF equipment, minimizing signal reflection loss.
Durable StructureMetal enclosure and precision engineering ensure long-term stability in outdoor environments, with low wind resistance and easy installation.

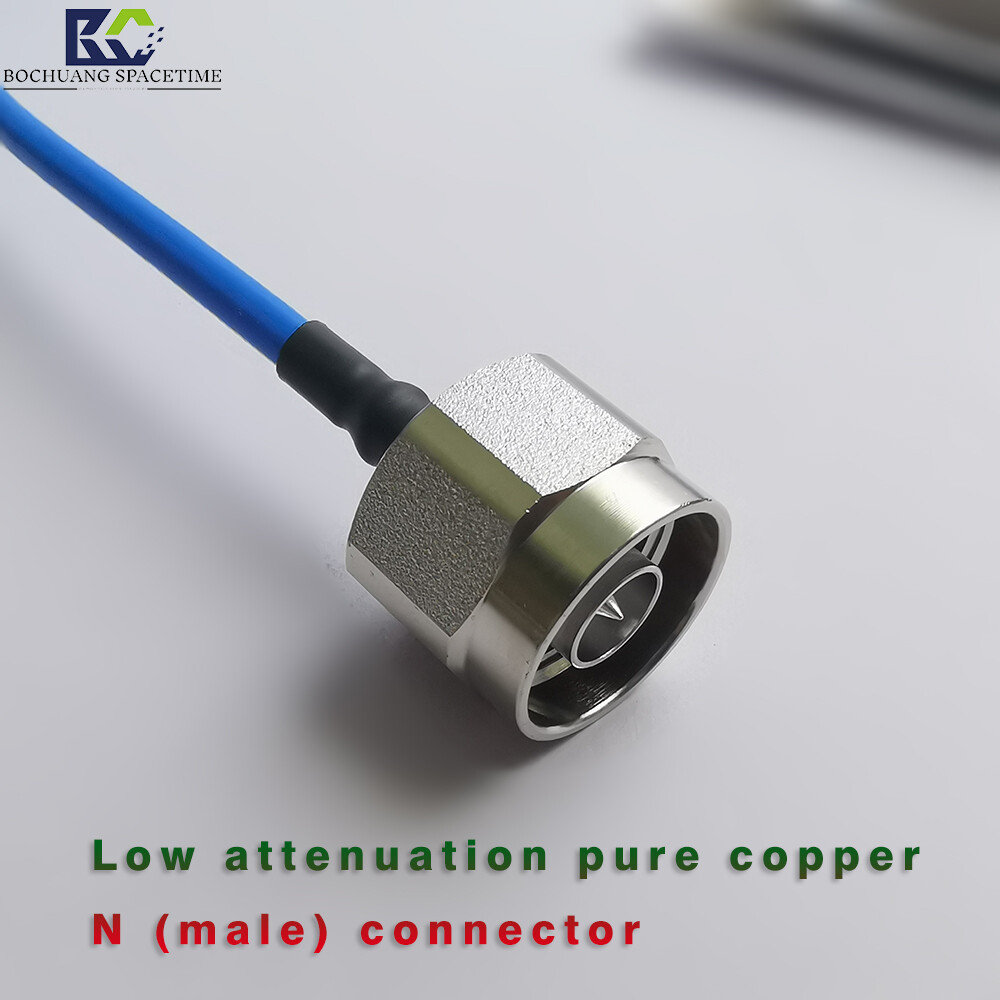

Plug-and-play interface：N-type male connectorReliable electrical connection for fast deployment and maintenance.

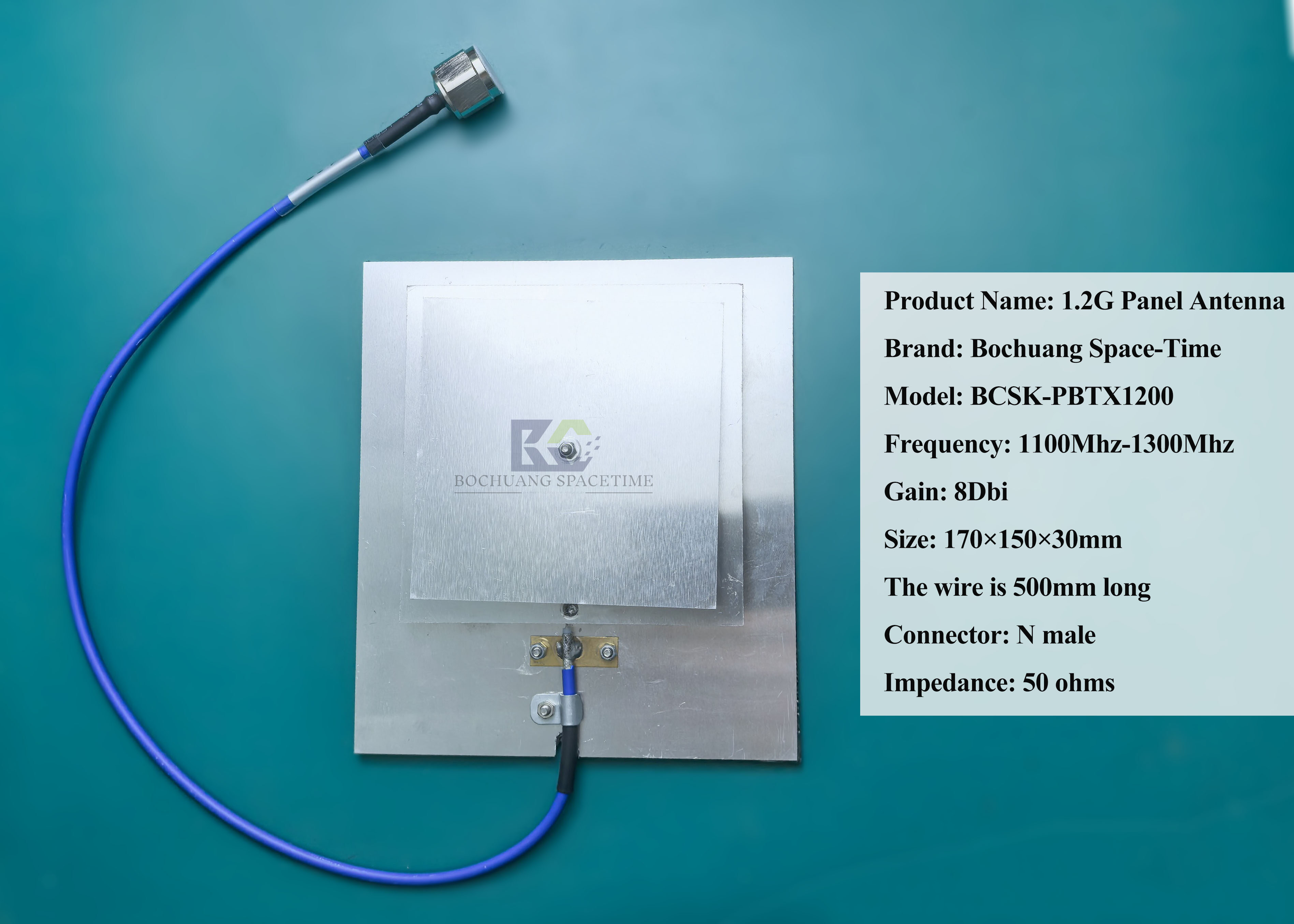

Technical Specifications
Parameter Item | Specifications |
|---|---|
Product Model | BCSK-PBTX1200 |
Operating Frequency | 1100MHz - 1300MHz |
Gain | 8dBi |
Impedance | 50Ω |

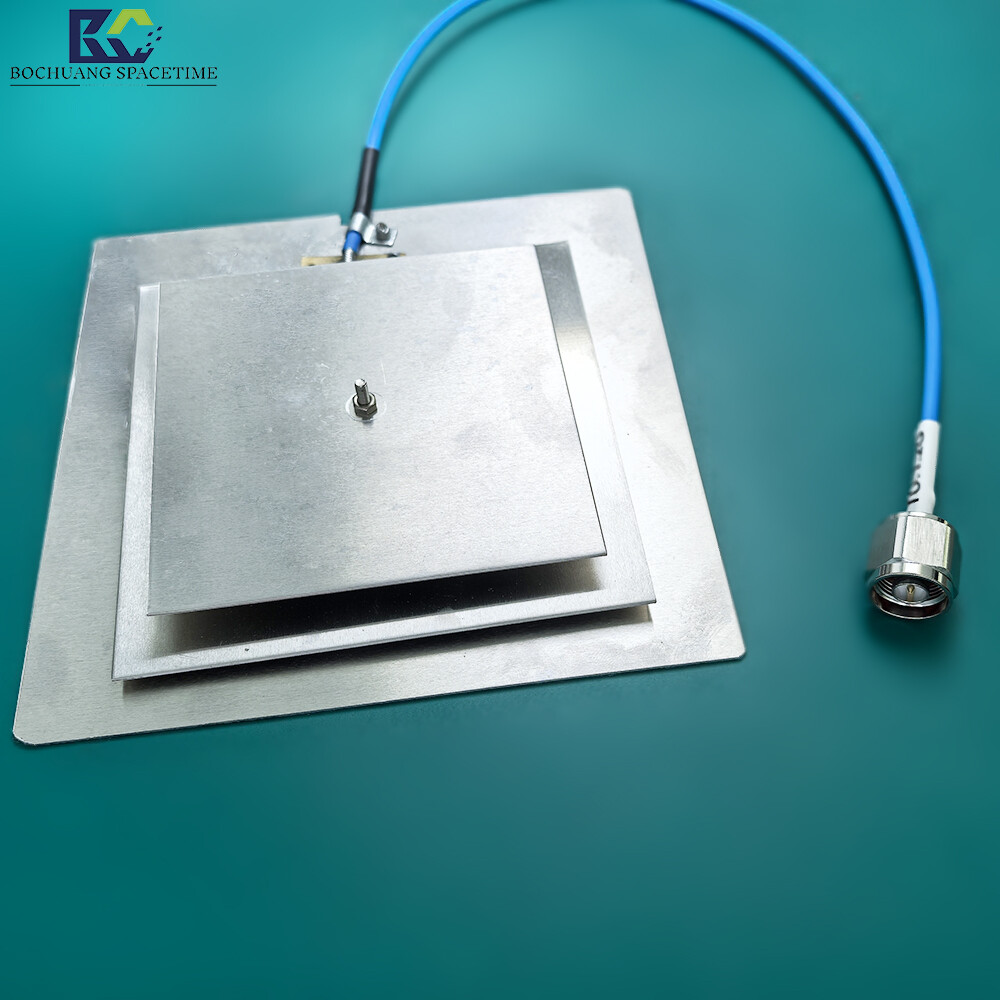

Interface Type | N-type Male / SMA MaleConnectorOptional |
Dimensions | 170 × 150 × 30mm |
Cable Length | 500mm |
Brand | Bocuang Space-Time |
Customer FAQ
Q1: Is this antenna suitable for outdoor installation?
Yes, the BCSK-PBTX1200 features a metal enclosure and sealed design, offering strong wind and dust resistance for deployment in diverse indoor and outdoor environments.
Q2: Is the N-type male connector compatible with my device?
A: N-type interface is an industrial standard.RF connectorsBroadly compatible with various 1 2G communication devices, routers, and repeaters. Confirm the device port type before direct connection.
Q3: How much communication distance can an 8dBi gain actually improve in real-world applications?
A: Compared toOmnidirectional AntennaThe 8dBi directional gain significantly boosts signal strength in the main beam direction, potentially increasing theoretical communication range by 30% to 50%, depending on environmental obstructions.
Shielding and device power.
Q4: Do you offer custom frequency or gain versions?
A: Bochuang Space-Time supports customizing frequency range, gain values, orConnector InterfaceType. For a tailored solution, please contact our technical team.
Q5: What should I keep in mind during installation?
Aim the antenna's main radiation lobe toward the target receiver and avoid metal obstructions. When mounting, ensure the bracket is secure to prevent wind-induced misalignment.
