Bochuang Space-Time BCSK-DY108A Model 3000W AC-to-DC Power Supply | High-Power Industrial Module for UAV Countermeasures and RF Amplifiers
Bochuang Spacetime BCSK-DY108A is a 3000W high-power switching power supply engineered for extreme high-load industrial environments. It delivers stable DC 28V / 108A continuous output with wide-range AC input from 110V to 260V, perfectly compatible with global industrial grids and vehicle power systems. As the core power unit for Anti-Drone Systems and high-power RF amplifiers, the BCSK-DY108A features a full aluminum alloy heat-dissipation enclosure with an intelligent thermal-control fan, ensuring low-temperature stability during extended full-power operation. Its built-in quad-protection circuitry—overcurrent, overvoltage, short-circuit, and overheating protection—effectively safeguards expensive downstream RF equipment. Whether deployed in fixed security base stations, mobile vehicle-based jamming platforms, or large-scale radio testing systems, this power supply provides clean, ripple-free DC power, making it the ideal choice for system integrators and demanding engineering projects.
In Stock（5000）
BCSK-DY108A 3000W 28V/108A Ultra-High PowerIndustrial Switching Power SupplyUltra-High-Power Power Module for Drone Countermeasures and RF Power Amplifiers
Product Overview
Bochuang Spacetime (Bochuang Spacetime) BSKY-DY108AEngineered for extreme high-load industrial environments3000WHigh-Power Switching Power Supply, provide
StableDC 28V / 108AContinuous output; input supports a wide range.AC 110V-260VPerfectly compatible with mainstream industrial power grids and vehicle power systems worldwide.
AsUAV Defense System(Anti-Drone System)andHigh PowerRF AmplifierThe core power supply unit, BCSK-DY108A, features an all-aluminum alloy heat dissipation housing.
Housing with intelligent thermal control fan design, ensuring stable low temperatures during extended full-power operation. Built-in four-layer protection against overcurrent, overvoltage, short circuit, and overheating.
The path effectively protects expensive backend RF equipment from damage. Whether used for fixed security base stations, mobile vehicle-based interference platforms, or large-scale radio testing systems,
This modelPowerDelivers clean, ripple-free DC power—ideal for system integrators and high-specification projects.
Key Features
Ultra-high power output:Rated output power up to3000W, continue output28V/108ASupports parallel connection of multiple modules or single high-power devices.
Ultra-wide voltage input:SupportedAC 110V-260VWide voltage input, compatible with global industrial power grids. High adaptability—no additional transformer required.
Industrial-grade multi-layer protection:Built-in overcurrent, overvoltage, short-circuit, and overheating protection safeguards connected devices and extends system lifespan.

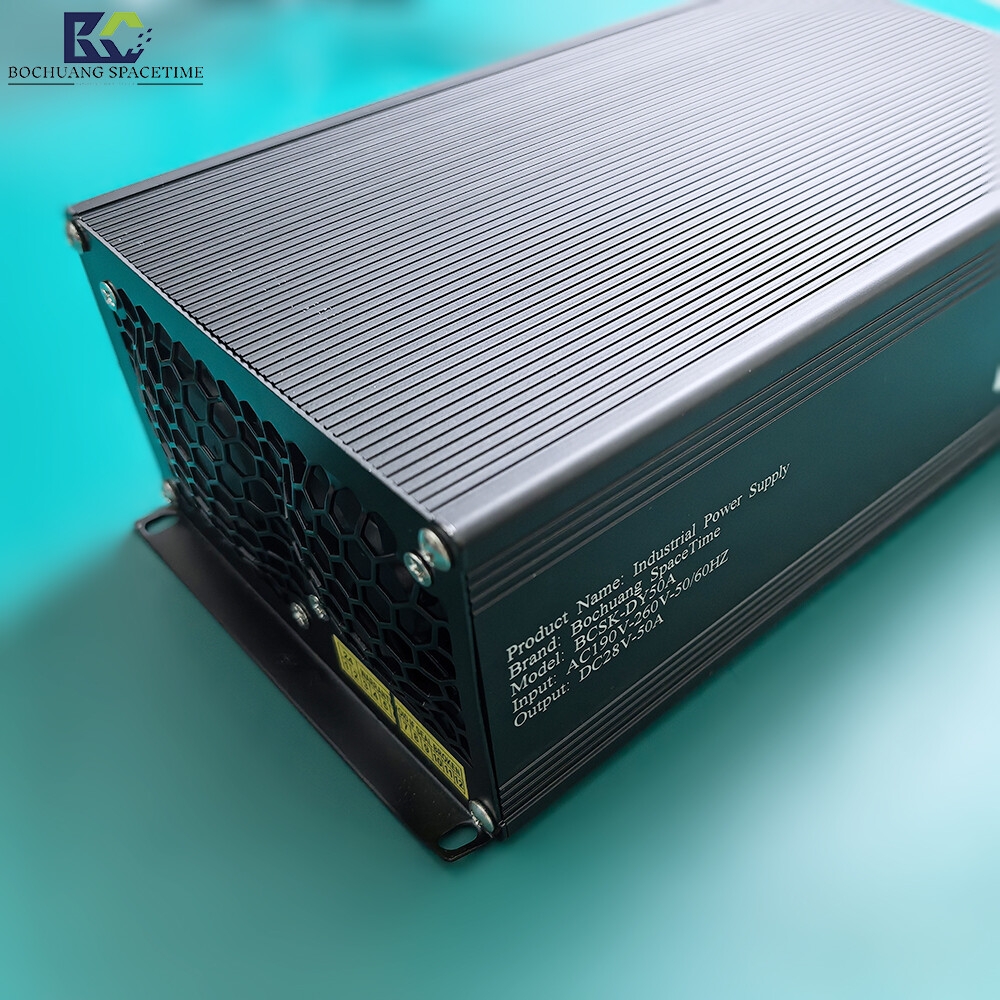

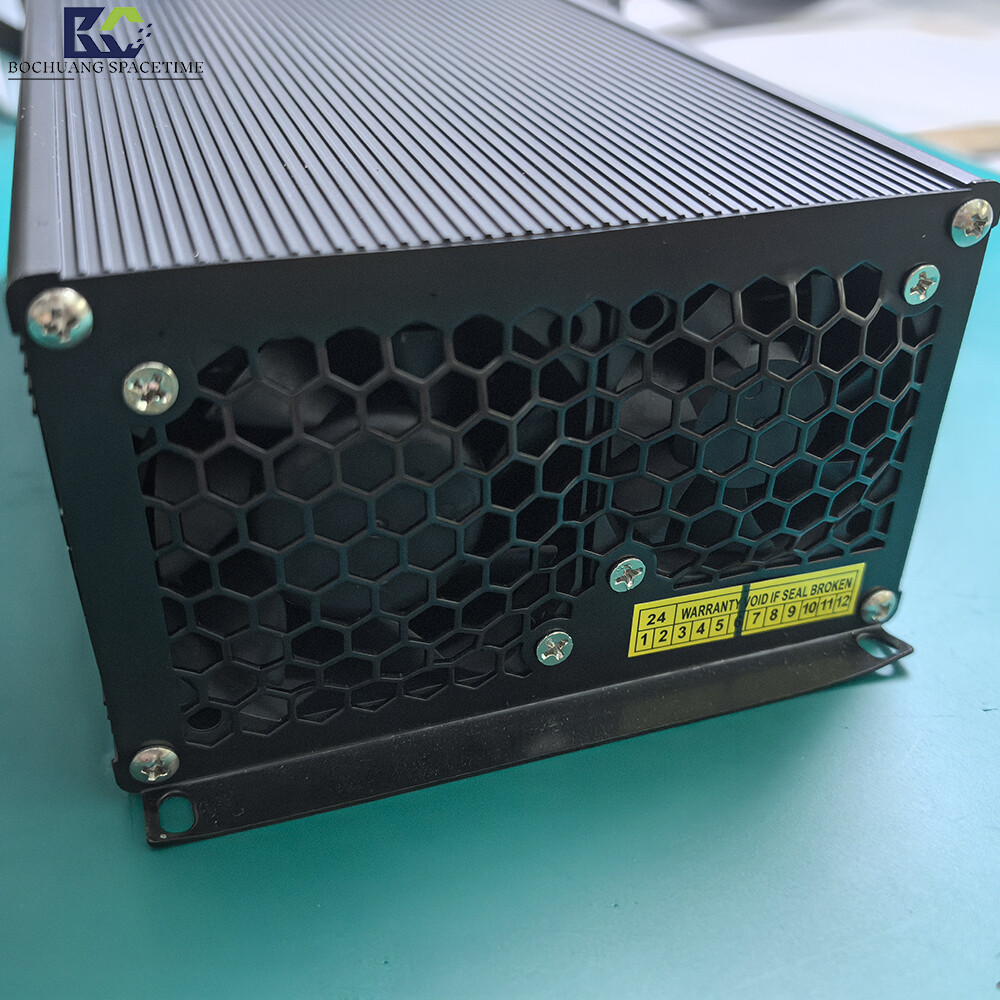

Efficient heat dissipation design:Features a thickened aluminum alloy casing and smart temperature-controlled fan to maintain optimal operating temperatures under full load, ensuring superior stability.

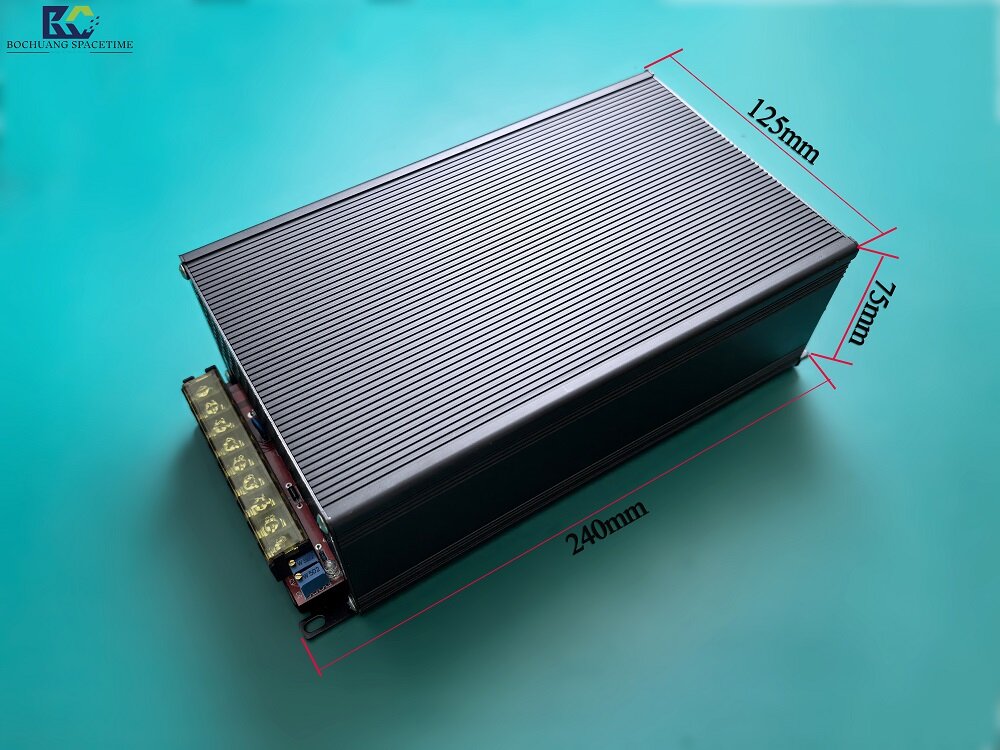

Compact design:Size is only240×125×75mmDesigned for easy integration into rack-mounted, vehicle-mounted, or handheld devices to save installation space.

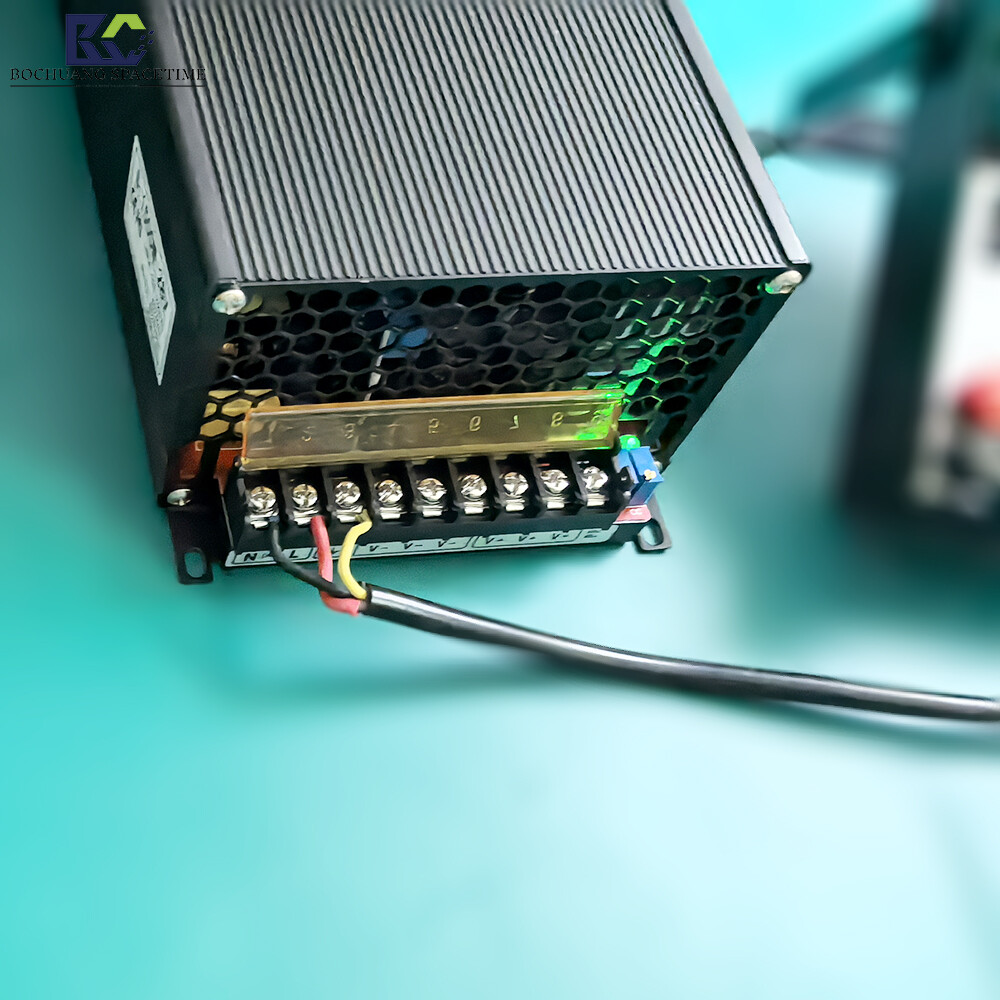

Multi-output terminals:Features multiple V+ and V- terminals for parallel expansion or split power distribution, flexibly adapting to complex system architectures.
Technical Specifications
Parameter Items | Specification Values | Notes |
|---|---|---|
Model | BCSK-DY108A | Bocuang Space-TimeIndustrial-grade power supply |
Rated Output Power | 3000W | Keep going |
Output Voltage | DC 28V | Adjustable range: ±5% |
Output Current | 108A | Peak current up to 120A |
Input Voltage | AC 110V-260V | 50/6Hz Adaptive |
Efficiency | ≥90% | Full load nominal |
Operating Temperature | -20℃ ~ +60℃ | with air cooling |
Protection Features | Overcurrent / Overvoltage / Short Circuit / Overheat | Auto-restore or lock |
Size | 240×175×75mm | Length × Width × Height |
Weight | Approx. 3.5 kg | containingRadiator |
Verify | CE, FCC | Meets international industrial standards |
Frequently Asked Questions (FAQ)
Q1: Can the BCSK-DY108A drive multiple 40W loads?RF Power Amplifier Module？
Yes. This power supply has a rated output of 3000W- and an output current of 108A, capable of driving up to 20-30 units of 40W.Amplifier Module(Theoretical value); actual recommendation is to reserve
20% buffer, supporting up to 20-25 devices for long-term stable operation.
Q2: Does the input voltage range of AC 110V–260V mean it can be used directly in both the US and Europe?
A2: Yes. This power supply supports global voltage standards and works directly in the US (110V), Europe (230V), China (220V), and more—no extra transformer needed.
Regional power grids are ideal for cross-border project deployment.
Q3: Is the power supply noisy at full load? Is it suitable for indoor server rooms?
A3: Smart Power SupplyTemperature-controlled fanAt low loads, the fan runs at a lower speed with reduced noise. At full load, the fan speed increases, resulting in noise levels of approximately 45-55 dB, which is normal for industrial equipment.
Range. Recommended for installation in well-ventilated cabinets; avoid enclosed spaces.
Q4: Does the power supply automatically protect itself if the output is short-circuited? How do I reset it?
A4: Yes, it features built-in short-circuit protection. When a short circuit is detected, the power supply immediately cuts off output and enters protection mode. After resolving the issue, simply power cycle to restore normal operation.
Normal operation. Some models support automatic recovery.
Q5: Does this power supply support parallel operation for increased total power?
A5: Supported. Parallel expansion is achievable via multiple V+ and V- terminals, but ensure all power supplies output the same voltage (calibrate using the trim knob). Use of
Current sharingModuleBalance load to prevent single-node overload.
