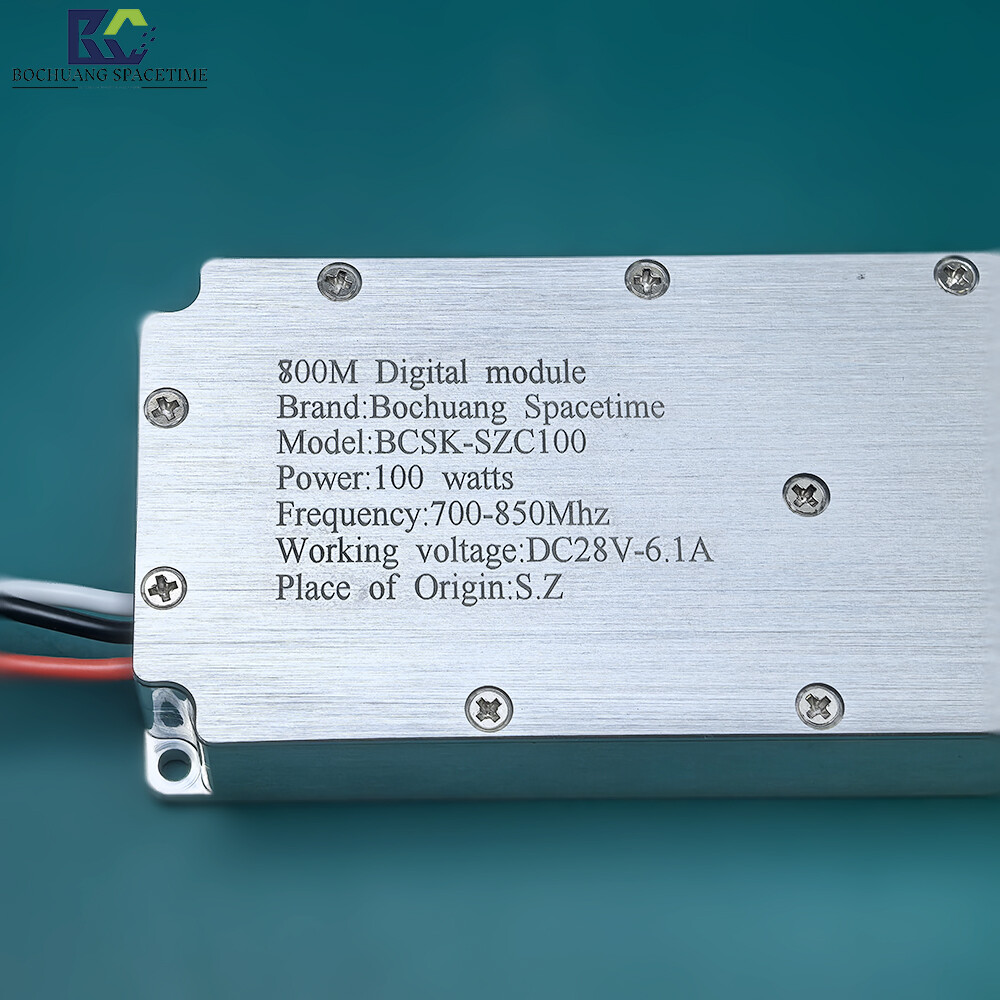

BCSK-SZC100 Custom Digital Module 700-850MHz 100W RF Power Amplifier Unit, Direct from Shenzhen Manufacturer
The BCSK-SZC100 is a high-performance 100W digital module developed by Bochuang Spacetime, designed for communication and signal enhancement in the 700-850MHz frequency band. Operating on a stable DC28V supply, it delivers 100W of continuous wave power with a typical operating current of 6.1A. Ideal for spectrum monitoring, wireless relaying, industrial testing platforms, and low-altitude defense systems, this module features an aluminum alloy shielded enclosure to effectively suppress electromagnetic interference. Built-in protections against overcurrent, overheating, and high VSWR ensure reliable operation during extended high-load periods. As a core power unit, its standardized RF power amplifier module interface allows for easy integration into embedded or rack-mounted systems, making it the ideal choice for building high-efficiency signal transmission chains.
In Stock (450units
Product Overview
BCSK-SZC100Built by Bochuang Spacetime for industrial communication and spectrum management scenarios.Custom Digital Module, operating frequency range covers
700-850 MHz, rated output power reaches100W Continuous Wave, inDC 28VTypical operating current under power supply is 6.1A. This module features a highly integrated RF architecture and is suitable for
For drone defense and strike systems, wireless relay interruption scenarios, spectrum monitoring equipment, industrial IoT gateways, and test & measurement systems require high signal stability and power density.
Rugged domain. Its aluminum alloy shielded enclosure effectively suppresses external electromagnetic interference, while built-in multi-layer protection mechanisms ensure long-term stable operation in complex electromagnetic environments. As
CustomizableRF Power AmplifierUnitSupports flexible configuration of interfaces, frequency bands, and power levels to meet the differentiated integration needs of OEM/ODM customers.
Performance Features
High linearity outputGain variation is less than ±1.2 dB across the full 700-850 MHz band, ensuring signal purity in multi-carrier systems and reducing intermodulation distortion risks.
Smart Thermal Management & ProtectionBuilt-in temperature sensor and current monitoring circuit automatically reduce power or shut down during overtemperature or overcurrent conditions to prevent thermal damage.
High Power Conversion Efficiency: Employs an optimized matching network and low-loss transmission line design, achieving over 58% efficiency at 10W output to reduce thermal load.
Industrial-grade environmental adaptabilitySupports wide-temperature operation from -20°C to +70°C. Passes vibration and shock tests for harsh deployment environments like vehicle-mounted systems and outdoor cabinets.
Standardized and Customizable: Standard with N-type femaleRF interfaceandDC Power SupplyInput terminal: supports customer-specified frequency, power class, enclosure size, and protection logic.
ofDeep Customization Services。
Technical Specifications
Parameter Item | Specifications |
|---|---|
Product Model | BCSK-SZC100 |
Operating Frequency Band | 700–850 MHz |
Output Power | 100W (Continuous Wave CW) |
Supply Voltage | DC 28V |
Operating Current | 6.1A (typical) |
RF interface | NConnector(Female) |
Protection Mechanism | Auto-recovery from overcurrent/overtemperature |
Casing Material | Aluminum Alloy Shielding Cavity |
Operating Temperature | -20°C ~ +70°C |
Custom Support | Frequency / Power / Interface / Logic |
Frequently Asked Questions (FAQ）
Q1: Does this module support customizing frequencies outside the 700-850 MHz range?
A: Yes, we offerFull-band Customization ServiceCenter frequency, bandwidth, and output power can be adjusted to meet customer requirements. Minimum order quantity depends on the specific solution.
Q2: Does the module require additional cooling measures in high-temperature environments?
A: The module features built-in high-efficiency heat dissipation. However, in enclosed spaces or during sustained full-power operation, additional cooling is recommended.Serrated Heat Sinkor forceAir-cooled fan, to extend service life
fate
Q3: Do you provide an SDK or control protocol for system integration?
AvailableElectronic Module Installation Technical DocumentationSupports remote online guidance, enabling seamless integration with the master control system for automated management.
Q4: What is the minimum order quantity? Are sample orders supported?
Standard products are available for single-unit purchase. Custom units have a minimum order quantity (MOQ) based on complexity, typically starting at 5 to 10 units. Technical support and testing assistance are provided.
