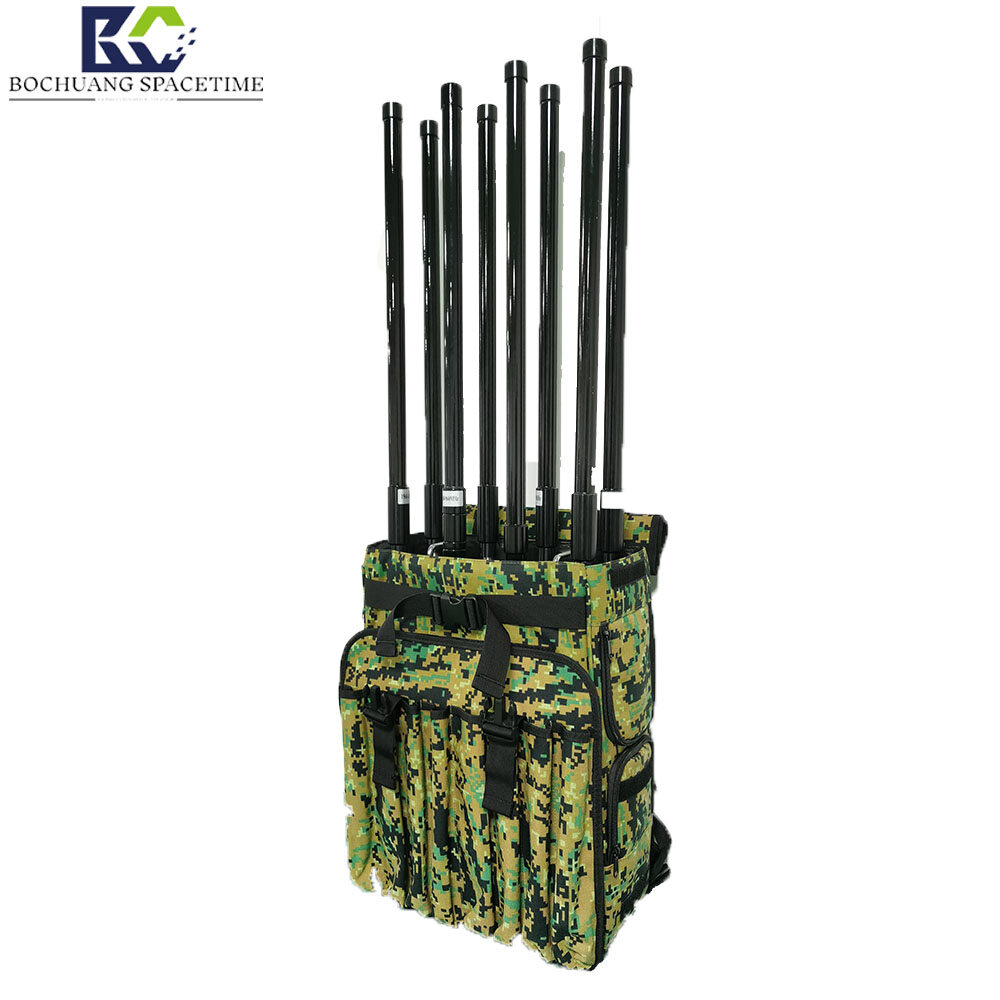

Backpack-style drone countermeasure device, 8-band 30W BCSK-BB08-3, 360° omnidirectional coverage, effective range of 500-1500m. Single-person portable low-altitude defense system.
This lightweight, camouflage backpack drone countermeasure device features an 8-band 30W system. It integrates 8 independent jamming modules covering key frequency bands: 400-470MHz, 840-930MHz, 1160-1280MHz, 1550-1620MHz, 2380-2500MHz, 5150-5300MHz, and 5720-5880MHz. With a single-channel power output of 30W, it ensures stable suppression of various consumer and industrial drones. The unit is equipped with a 360° omnidirectional fiberglass antenna that provides circular signal radiation, eliminating the need for manual directional adjustment—ideal for open areas or mobile patrol scenarios. Measuring 480x360x140mm and weighing 18.5kg, it supports DC28V/20000mAh battery power for extended operation, making it the ideal solution for building a mobile low-altitude defense system.
In Stock（500）
Backpack-style UAV countermeasure device, 8-band 30W BCSK-BB08-3, 360° omnidirectional coverage, effective range 500-1500m, single-person wearableLow-Altitude Defense System
TheBackpackDrone Countermeasure Equipment30-Watt, 8-bandFeatures a lightweight camouflage backpack design with 8 integrated independent jamming modules, covering 400-470MHz and 840-
930MHz, 1160-1280 MHz, 1550-1620 MHz, 2380-2500 MHz, 5150-5300 MHz, 5720-5880 MHz, and other key frequency bands; single-channel power
30W, ensuring stable jamming across consumer and industrial drones. The device is equipped with a 360° omnidirectional fiberglass antenna that provides circular signal coverage, eliminating the need for manual orientation adjustment.
is ideal for open areas or mobile patrol scenarios. Overall dimensions: 480x360x140mm; weight: 18.5kg. Powered by DC28V/20000mAh battery, with extended runtime.
Durability makes it the ideal platform for mobile low-altitude defense systems.
Key Features
Single-person wearable designWeighing just 18.5kg as a complete unit, it features an ergonomic shoulder strap and a camouflage case, ideal for extended field operations or rapid urban deployment.
8-Band Omnipresent Suppression: Covers 8 critical frequency bands from 400MHz to 5.8GHz, including GPS L1/L2, WiFi 2, 4G/5, 8G, and remote control links to ensure full coverage.
Suppress.
360° Omnidirectional AntennaEquipped with a high-gain fiberglass antenna, it provides 360° signal coverage without aiming requirements, improving response speed and coverage efficiency.
Long-range battery systemBuilt-in 20000mAh high-capacity lithium battery; supports DC 28V input for several hours of continuous operation, meeting demanding task requirements.
Compact and portable designCompact dimensions of just 480x360x140mm fit easily into tactical backpacks or vehicle gear for rapid deployment and stowage.
Parameter Table
Parameter Item | Specification Values |
|---|---|
Product Model | BCSK-BB08-3 |
Interference Band | 400-470MHz, 840-930MHz, 1160-1280MHz, 1550-1620MHz, 2380-2500MHz, 5150-5300MHz, 5720-5880MHz |
Single-channel power | 30W |
Effective Countermeasure Range | 500 - 1500 meters (subject to drone signal strength and surrounding environmental signal conditions) |
Antenna Type | |
Power Supply | DC28V / 20000mAh Li-ion Battery |
Dimensions | 480 x 360 x 140 mm |
Total Weight | 18.5kg |
Q&A
Q: Can this device jam multiple drones simultaneously?
Answer: Yes. The device is equipped with 8 independent jamming channels, enabling simultaneous suppression of drone signals across multiple frequency bands. Ideal for coordinated multi-drone attacks or dense airspace defense scenarios.
scenery.
How long is the battery life?
A: The device can operate continuously for approximately 1-3 hours on a full charge, depending on the operating environment and interference levels. It supports external power or hot-swappable backup batteries.
Deploy to ensure sustained operational capability.
Q: Is it suitable for use in rainy or humid conditions?
A: The device housing offers basic dust and water resistance, but prolonged exposure to heavy rain or high humidity is not recommended. For all-weather operations, pair it with a waterproof cover or accessory.
Place in a shaded area.
