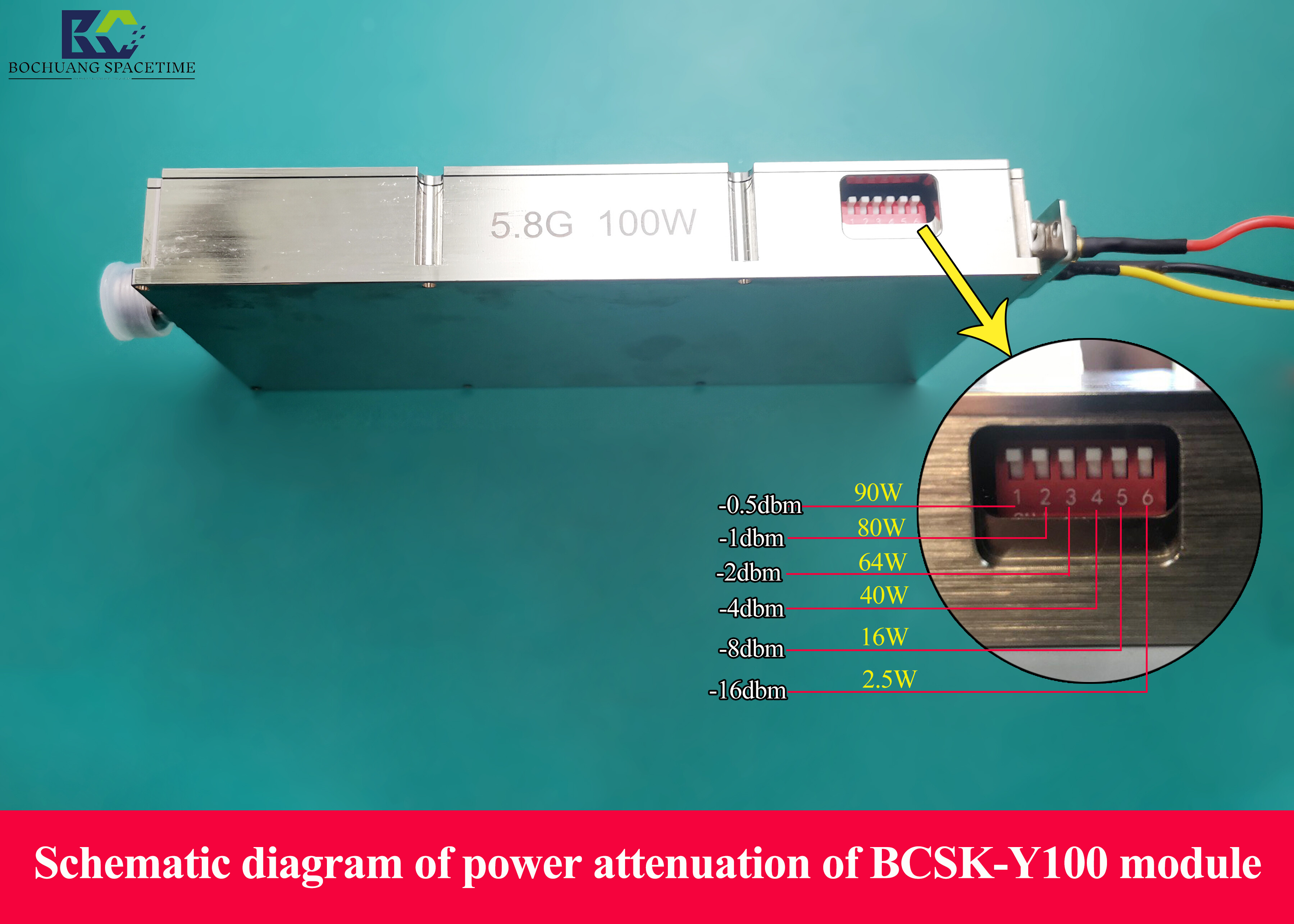

5.7GHz-5.8GHz 100W RF Power Module: Competitive Pricing | BCSK-Y100 Core Component for High-Frequency UAV Defense
To address the global demand for high-frequency signal jamming in low-altitude security, we introduce the BSKS-Y100 type 5.8 GHz RF power module. This module precisely covers the 5720-5850 MHz frequency band and delivers a stable 100W saturated output power, serving as the critical RF front-end for building high-performance drone countermeasure systems. When seeking cost-effective RF power module solutions, the BSKS-Y100 stands out with its superior energy efficiency. It supports a wide voltage input of DC24V-28V (9A) and features advanced thermal design with an industrial-grade aluminum alloy shielded enclosure, ensuring thermal stability and reliability during extended continuous operation. Whether used in portable jamming devices or fixed base stations, this 5.8 GHz high-power amplifier module effectively handles challenges posed by high-speed video transmission signals. As a direct manufacturer, we are committed to providing global B2B customers with competitive wholesale pricing and customized services to help your security products quickly capture the market.
In Stock（500）
Product Overview
In low-altitude security applications involving high-speed data transmission and HD video link interference, effective coverage in the 5.8GHz band is critical. As a professional RF front-end solution
Solution Provider: Our BSK-Y100 is a high-efficiency module designed specifically for the 5.8G ISM band.RF Power ModuleThis module precisely covers 5720-5850 MHz.
Frequency band capable of continuously delivering 100W of saturated power is essential for building high-performanceUAV Defense SystemThe core power unit for spectrum management equipment.
For system integrators, when evaluating total BOM costs, offering highly competitiveRF Power Module Priceoften a key decision factor. BCSK-Y100 not only
Competes with top-tier international brands in performance, while delivering exceptional value through optimized supply chains and manufacturing processes. Supports wide DC voltage input of 24V–28V (rated
9A constant current), housed in a compact aluminum alloy shielded enclosure with exceptional heat dissipation. This5 8G High-Power Amplifier ModuleEspecially suitable for countering high-end systems with frequency hopping capabilities.
Drone video transmission signal. We are committed to providing global B2B customers with stable, compliant, and transparent pricing solutions.Industrial-grade RF AmplifierHelp your product stand out in a competitive market
Stay ahead of the competition.
Performance Features
High-frequency precise coverageDeeply optimized for the 5720-5850 MHz band with excellent in-band gain flatness to ensureDrone Countermeasure EquipmentProcessing high-speed Wi-Fi
Provides seamless HD video transmission with no blind spots and effectively suppresses data links.
High-efficiency designMaintains excellent Power Added Efficiency (PAE) at 10 W output power, significantly reducing the load on the power system. This low-power
Features make itPortable Spectrum Jamming Devicethe ideal choice to extend battery life.
Excellent thermal stability: Built-in intelligent thermal management design and large-area heat dissipation substrate, combined with an industrial-grade aluminum alloy enclosure, ensuring stable operation under high-load continuous conditions.
Temperature-controlled, meetsIndustrial-grade RF componentsstringent reliability standards.
Wide voltage input compatibility: Supports wide-range DC input from 24V to 28V, suitable for vehicle, marine, and battery pack power environments. The 9A current design includes headroom.
Ample margin, guaranteed5.8G Signal Amplifier UnitStable output even during voltage fluctuations.
Cost-effective procurement solutions: As a direct-source factory supplier, we eliminate middleman markups to offer highly competitiveRF power module priceWhether it is
Whether for small-batch R&D testing or large-scale mass production, enjoy stable supply and dedicated technical support.
Technical Specifications
Parameter Items | Specifications | Notes |
|---|---|---|
Product Model | BCSK-Y100 | 5.8G Series |
Operating Frequency | 5720 - 5850 MHz | Overwrite mainstream 5 8G frequency bands |
Saturation Output Power | ≥ 100 W (50 dBm) | Typical Value |
Operating Voltage | DC 24V - 28V | Wide voltage design |
Operating Current | ≤ 9 A | @ Pout=100W |
Gain | ≥ 30 dB | Typical Value |
Harmonic Suppression | ≤ -20 dBc | Second Harmonic |
Operating Temperature | -40°C to +85°C | Industrial-grade temperature range |
Interface Type | SMA-F / N-F (Optional) | Standard RF Interface |
Size/Weight | 175*84*25mm (0.8KG) | Easy to integrate |
Frequently Asked Questions (FAQ)
Q1: Does the BCSK-Y100 module support continuous wave (CW) operation?
A: Yes, theRF Power ModuleDesigned for continuous-wave operation. In practical applications, effective heat dissipation measures (such as air or water cooling) are recommended to ensure long-term reliability.
Reliability.
Q2: Do you offer volume discounts on RF power modules?
A: We offer tiered pricing based on order volume. As a B2B supplier, we value long-term partnerships and bulk purchasing.5 8G Amplifier ModuleGet better deals
For unit pricing and payment term support, please contact our sales team for the latest price list.
Q3: What is the input drive power requirement for this module?
A: To achieve 100W of saturated output, the pre-driver power should be between 20dBm and 27dBm. Insufficient drive will result in low output power, while excessive drive can
May damage the input; a dedicated driver amplifier is recommended.
Q4: Does the module have built-in VSWR protection?
A: The module includes built-in basic protection circuitry, but to maximize longevityIndustrial-grade RF Amplifierservice life. It is strongly recommended to install an isolator or circulator at the output.
Isolator to absorb reflected power and prevent damage from antenna mismatch.
Q5: What specific use cases is this module designed for?
A: In addition to serving asUAV Defense SystemIn addition to its core components, it is also widely used in wireless communication testing, microwave heating, radar signal simulation, and scientific research experiments that require
5. High-power signals in the 8G frequency band.
Cost of 10W UAV jammer power amplifier
Industrial-grade 5 8G signal booster price
FAQ
Which frequency bands does the BCSK-Y100 cover?
Operating frequency bands: 5.7 GHz, 5.8 GHz. Please confirm the carrier frequency band or target link at your deployment location before ordering. If you need a customized frequency combination, please submit a customization request.
What is the output power of BCSK-Y100?
Rated output power is 100W. Actual coverage depends on antenna gain, feeder loss, and site conditions; test data for specific configurations are available upon request.
Does the BCSK-Y100 support customization and bulk purchasing?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
